305-020-520-501

Edgeboard Connectors Overview

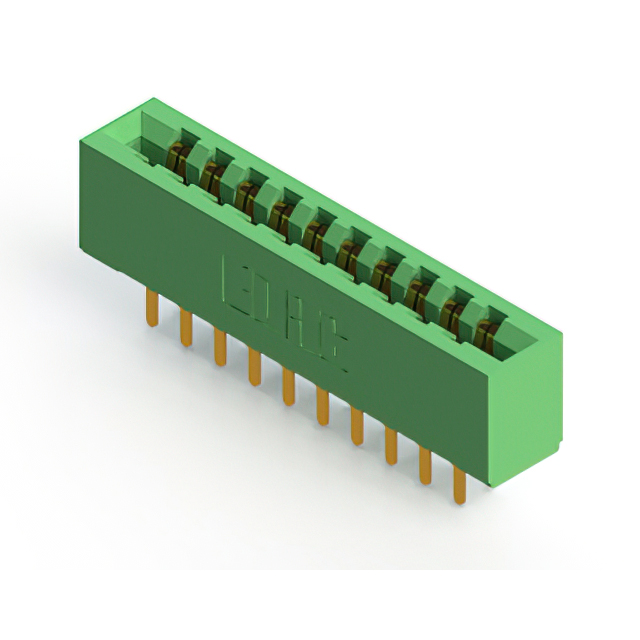

The EDAC Inc. 305-020-520-501 is a standard card edge connector from the 305 series, designed for dual-row configurations with a 3.96 mm pitch. It features 20 positions and accepts PCBs with a thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and solder pin termination for secure electrical connections. Rated for 5 A continuous current, it operates within a temperature range of -40 C to +105 C. The housing is constructed from green thermoplastic polyester, providing high insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row configuration supporting various mounting options including panel and PCB mount styles
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
• Accepts between-contact and in-contact polarizing keys for precise alignment
• Thermoplastic polyester housing provides structural integrity and thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standardized modular connections
• Automotive electronics demanding high reliability under varying temperatures
• Test and measurement instruments needing stable signal pathways

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 20-position count and 3.96 mm pitch before ordering. Confirm that the application environment stays within the specified -40 C to +105 C operating temperature range. Ensure the mating PCB thickness is exactly 1.57 mm to guarantee proper contact engagement. Check for RoHS compliance requirements if applicable to your manufacturing standards. Validate that the gold plating specification meets your conductivity needs.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with a 3.96 mm pitch is required for 20 signals. Consider the 5 A current rating to ensure it supports the load of your circuitry. Choose this model if panel or vertical mounting is preferred over straight PCB mount configurations. Verify that the green thermoplastic housing material aligns with your environmental protection requirements. Ensure compatibility with polarizing keys if mechanical locking is necessary for your assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series, which offers a range of card edge connectors with consistent 3.96 mm spacing. The series provides flexibility through multiple position counts and mounting styles. These connectors are engineered for durability in demanding electronic environments. The 305 series maintains uniform electrical characteristics across different variants, simplifying design integration for engineers working with modular board architectures.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
