305-020-520-503

Edgeboard Connectors Overview

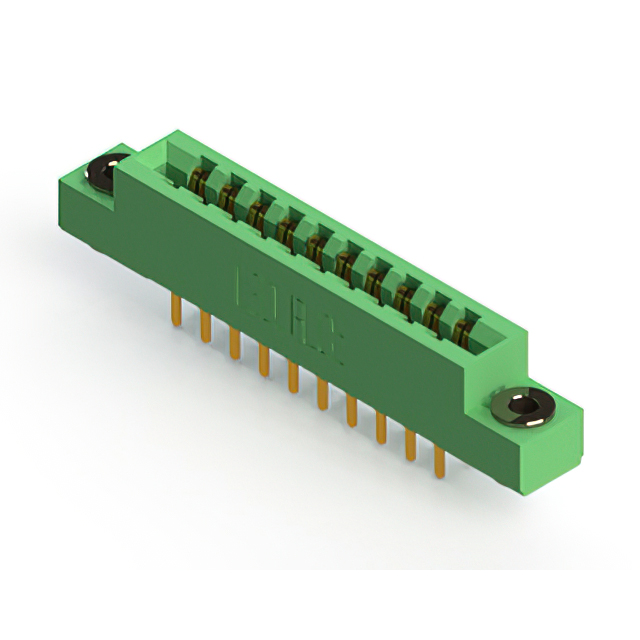

The EDAC Inc. 305-020-520-503 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. This component features a dual-row configuration with 20 positions and a pitch of 3.96 mm (0.156 inches). It supports a PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. The connector utilizes gold-plated copper alloy contacts for corrosion resistance and offers a current rating of 5 A. Insulation resistance is specified at 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing two parallel contact lines for increased I/O density
• Gold-plated copper alloy contacts ensure durable electrical connections and corrosion resistance
• Thermoplastic polyester insulation provides stable mechanical support and high dielectric strength
• Panel mount through-hole termination allows secure integration into chassis or panel structures

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interfaces
• Telecommunications equipment utilizing standard card edge form factors
• Automotive electronics needing wide operating temperature tolerance
• Test and measurement devices requiring reliable signal routing

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness, flange dimensions, and mounting variations. Ensure compatibility with target PCB hole sizes and panel cutouts before procurement. Cross-reference RoHS compliance status with the latest manufacturer datasheet to meet regional regulatory requirements. Confirm availability through authorized distributors as supply levels may fluctuate.

Edgeboard Connectors Selection Notes

Select this model when a 20-position dual-row connector with 3.96 mm pitch is required for panel mounting applications. Consider the 1.57 mm board thickness constraint and verify that the 5 A current rating meets circuit demands. Evaluate the -40°C to +105°C operating range against environmental conditions. Compare with other 305 series variants if different row counts or termination styles are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, a family of standard card edge connectors known for versatility in industrial and commercial applications. The series offers various position counts and mounting options, all sharing common design principles such as gold-plated contacts and thermoplastic insulation. The 305-020-520-503 specifically addresses needs for moderate pin counts with panel-mount flexibility.
