305-020-520-508

Edgeboard Connectors Overview

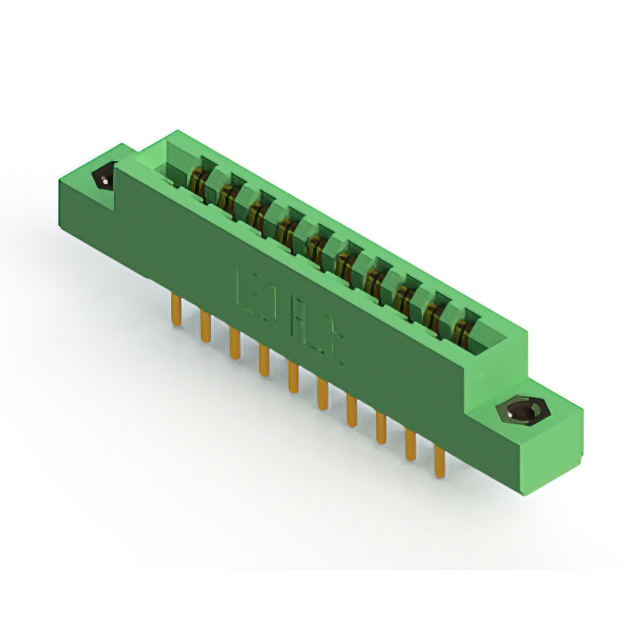

The EDAC 305-020-520-508 is a standard card edge connector featuring 20 positions arranged in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component provides a continuous current rating of 5 A and supports 1800 VACrms insulation voltage. Contacts are gold-plated copper alloy, ensuring reliable conductivity. The housing is constructed from green thermoplastic polyester, offering durability within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Dual-edge design facilitates connection to both sides of the card edge
• Low-profile insulator body reduces overall assembly height

Edgeboard Connectors Applications

• Industrial control systems requiring robust card-to-board connections
• Telecommunications equipment utilizing standardized module interfaces
• Automotive electronics assemblies needing high-voltage isolation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness, material composition, and packaging specifications. Ensure compatibility with the target PCB edge profile and polarizing key requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 20-position interface with 3.96 mm pitch is required. Confirm that the application environment stays within the specified thermal limits and that the 5 A current rating meets the electrical load demands of the connected circuitry.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its .156 inch contact spacing and compatibility with .062 inch thick PCBs. It serves as a reliable interconnect solution for modular electronic designs across various industrial sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Generic equivalents may not match the precise dimensional tolerances or electrical ratings required for this specific connector type.
