305-022-521-207

Edgeboard Connectors Overview

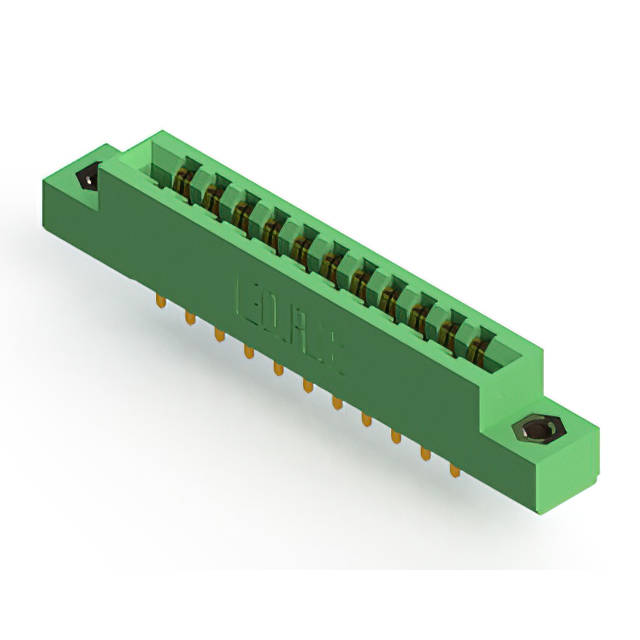

The EDAC Inc. 305-022-521-207 is a standard card edge connector from the 305 series, designed for dual female mating with unassigned double-sided circuit cards. It features 22 positions arranged in two rows with a 3.96 mm (0.156 inch) pitch. The unit utilizes copper alloy contacts with gold plating and employs a solder lug termination method. Designed for panel mounting in a vertical orientation, it accommodates board thicknesses ranging from 1.37 mm to 1.78 mm. The housing is constructed from green thermoplastic polyester, ensuring reliable performance within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 22 contact positions for high-density interconnect applications
• Gold-plated copper alloy contacts ensure stable electrical conductivity and corrosion resistance
• Vertical panel mount design with solder lug termination for secure mechanical installation
• Thermoplastic polyester insulation supports operation across a wide industrial temperature spectrum

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standardized module connections
• Test and measurement instrumentation with modular circuit boards
• Automotive electronics assemblies needing durable vertical connectors

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and flange specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through current manufacturer datasheets. Cross-reference ordering numbers with authorized distributors to avoid counterfeit components. Validate that the selected variant matches the required panel mounting constraints.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector with a 3.96 mm pitch is required for vertical panel integration. Ensure the application environment stays within the specified -40°C to +105°C operational range. Verify that the target circuit board thickness falls between 1.37 mm and 1.78 mm for proper contact engagement. Consider the solder lug termination requirement for panel mounting versus PCB surface mount alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which offers various position counts and mounting configurations. The series is characterized by its consistent 3.96 mm pitch and use of thermoplastic polyester insulation. These connectors are engineered for reliability in demanding electronic environments, providing stable signal transmission for double-sided circuit cards.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents within the 305 series. Verify dimensional compatibility and electrical ratings before considering alternative manufacturers. No public substitute part numbers are confirmed in available documentation.
