305-022-555-208

Edgeboard Connectors Overview

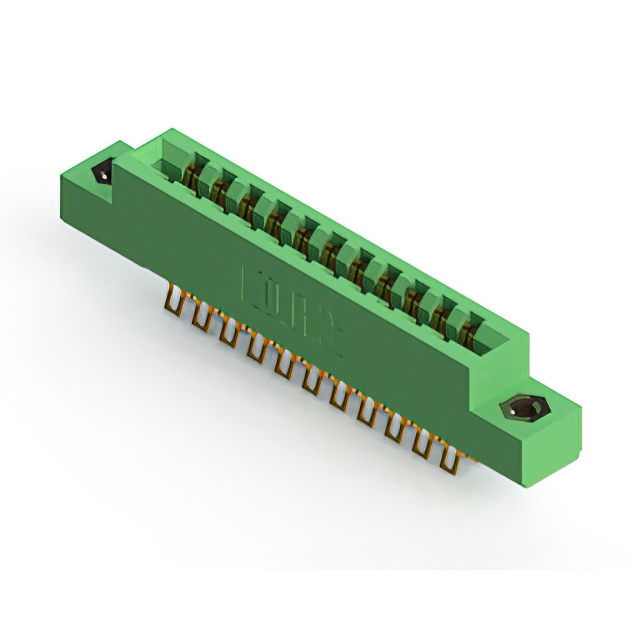

The EDAC 305-022-555-208 is a standard card edge connector from the 305 series, designed for vertical panel mounting. It features 22 positions arranged in two rows with a 3.96 mm pitch. The connector utilizes gold-plated copper alloy contacts and a thermoplastic insulator body. It supports a continuous current rating of 5 A and offers an insulation resistance of 5 GOhms. The unit is rated for operation between -40°C and +105°C and accepts printed circuit boards with a nominal thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board retention
• Features low profile insulator body construction
• Provides high insulation resistance of 5 GOhms

Edgeboard Connectors Applications

• Vertical panel mount interconnect systems
• Dual-edge card edge PCB connections
• Industrial control module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix code to confirm contact plating thickness and termination style. Ensure the ordering documentation matches the required 22-position configuration and 3.96 mm pitch. Confirm RoHS compliance status through official manufacturer channels before integration into regulated assemblies.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount solution is required for dual-edge cards. The 3.96 mm spacing accommodates standard board thicknesses. Verify that the 5 A current rating meets system electrical requirements and that the operating temperature range aligns with environmental conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and mounting styles. The 305-022-555-208 specifically denotes a 22-position variant with gold contacts and panel mount capabilities within the broader product family.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 305 series variants for position count differences. Verify compatibility with existing polarizing key requirements and panel cutout dimensions before substituting.
