305-024-500-502

Edgeboard Connectors Overview

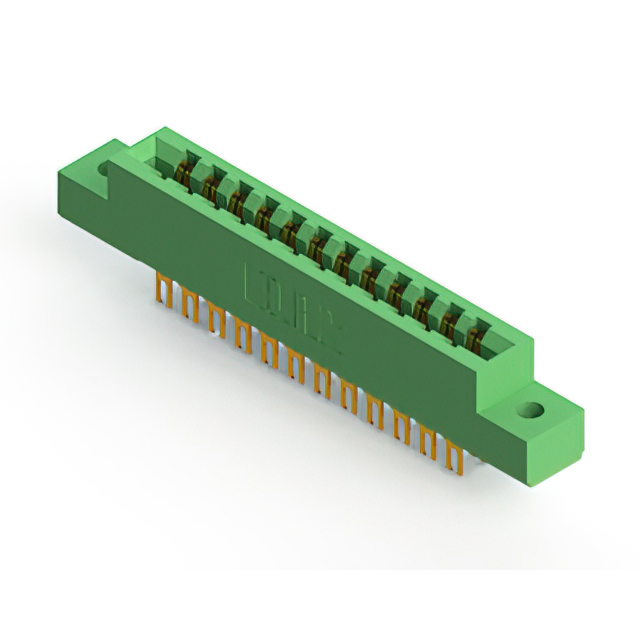

The EDAC Inc. 305-024-500-502 is a standard card edge connector from the 305 series, designed for dual-edge female applications. It features 24 positions with a 3.96 mm (0.156 inch) pitch and accepts board thicknesses between 1.37 mm and 1.78 mm. The contacts are gold-plated copper alloy with a 5 A current rating, housed in green thermoplastic insulation. Rated for operation from -40°C to +105°C, it utilizes solder pin termination and offers 5 GOhms insulation resistance.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure card insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides thermal stability up to 105°C
• Solder pin termination supports panel mount installation

Edgeboard Connectors Applications

• Medical interconnect solutions
• Ambulance communication systems
• Ventilator circuit connections
• CPAP machine interfaces

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the specific suffix matches the required 24-position dual-edge specification. Ensure the procurement channel provides valid RoHS compliance records. Check for any recent product change notifications that may affect dimensional or material properties before finalizing orders.

Edgeboard Connectors Selection Notes

Select this model when a 3.96 mm pitch dual-edge connector is required for medical or industrial equipment. The 5 A rating suits moderate signal and power loads. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm range. Consider the vertical panel mount style and solder pin termination method during mechanical design integration.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options. The 305-024-500-502 specifically addresses the need for a 24-position interface with robust gold plating and high-temperature thermoplastic insulation suitable for demanding environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with different position counts or termination styles. No alternative part numbers are confirmed as functional equivalents in public documentation.
