305-024-555-201

Edgeboard Connectors Overview

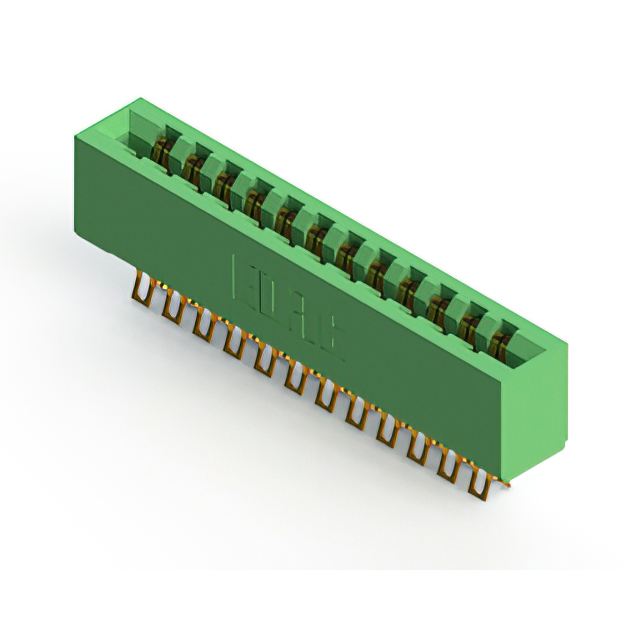

The EDAC Inc. model 305-024-555-201 is a standard card edge connector belonging to the 305 series. It features 24 positions arranged in a dual row configuration with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator body. Designed for panel mount installation, it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component supports a temperature range of -40°C to +105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual row female connector design for non-specified dual-edge cards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Low profile insulator body constructed from thermoplastic polyester
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify that the specific suffix matches the required board thickness and mounting style. Confirm RoHS3 compliance status for environmental regulations. Ensure the supplier provides official datasheets to validate contact plating specifications. Check for availability constraints as distribution may vary by region. Validate packaging quantities against project requirements before ordering.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with 0.156-inch pitch is required. Ensure the target PCB thickness aligns with the 0.062-inch nominal specification. Consider the vertical panel mount requirement for enclosure integration. Verify that the operating temperature range meets the application's thermal environment. Confirm that the gold plating thickness satisfies the intended cycle life expectations.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options. The 305 series is designed for high-reliability applications requiring robust mechanical connections. Other variants in the series differ primarily in position count and flange configurations.

Edgeboard Connectors FAQ

What is the nominal printed circuit board thickness?

The connector accepts a nominal PCB thickness of 0.062 inches (1.57 mm).

Is the connector suitable for high-temperature environments?

Yes, the component operates within a temperature range of -40°C to +105°C.
