305-058-500-507

Edgeboard Connectors Overview

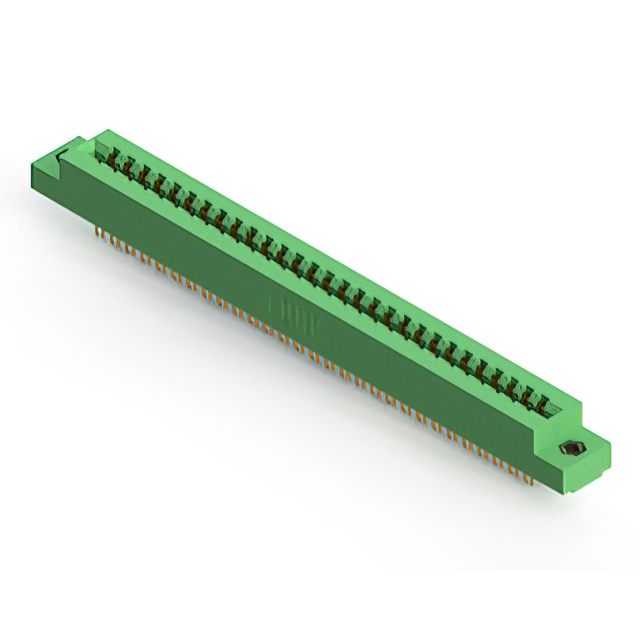

The EDAC Inc. 305-058-500-507 is a standard card edge connector from the 305 Series, designed for dual-row female termination. It features a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The component accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). It contains 58 positions arranged in two rows, utilizing wire hole type contacts with gold plating. The insulator body is constructed from thermoplastic polyester, providing a low-profile design suitable for panel mounting applications.

Edgeboard Connectors Feature Summary

• Dual-row configuration with 58 positions for high-density interconnects
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Low-profile insulator body optimized for space-constrained panel installations
• Compatible with nominal 1.57 mm thick PCB substrates

Edgeboard Connectors Applications

• Panel-mounted electronic systems requiring robust card edge interfaces
• Industrial control modules utilizing standardized board thicknesses
• Communication equipment backplanes needing dual-row connectivity

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact tail dimensions and flange characteristics, as these vary within the series. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm RoHS compliance status through official manufacturer documentation or authorized distributor datasheets. Cross-reference the Mouser part number 587-305-058-500-507 for accurate sourcing channels.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with 3.96 mm pitch is required for panel mounting. The 58-position count suits applications needing moderate I/O density. Verify that the target PCB thickness aligns with the specified 1.57 mm nominal requirement. Consider the low-profile body height if vertical clearance is limited in the enclosure design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 Series, which offers various configurations for card edge applications. The series provides options for different position counts and mounting styles. The 305-058-500-507 specifically addresses needs for dual-row female connections with gold-plated contacts. It complements other parts in the series by offering a standardized interface for industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variants with different position counts such as 305-050-520-507 or 305-080-555-568, provided the pin count matches the design requirements. Ensure any replacement maintains the 3.96 mm contact spacing and compatible PCB thickness specifications.
