305-058-520-512

Edgeboard Connectors Overview

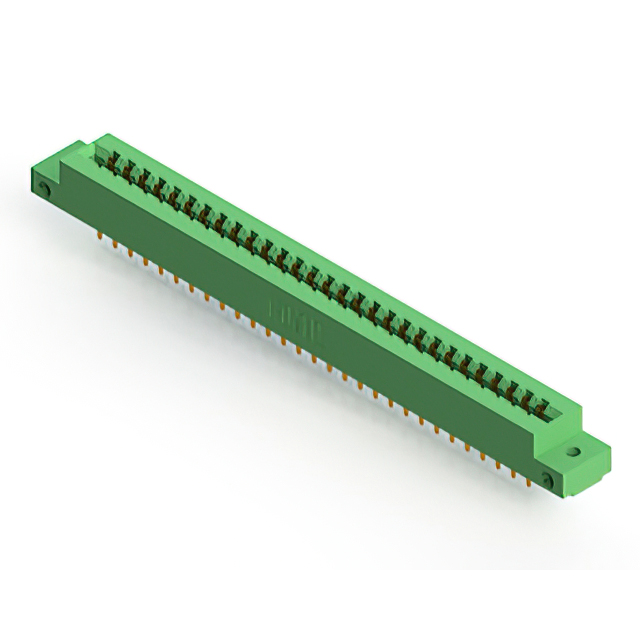

The EDAC Inc. part number 305-058-520-512 is a standard card edge connector from the 305 series, designed for panel mount installation with vertical orientation. It features a dual female configuration with 58 positions and a contact spacing of 3.96 mm (0.156 inches). The connector utilizes gold-plated copper alloy contacts with a solder pin termination type. It is rated for 5 A current and operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic polyester, accepting printed circuit boards with a nominal thickness of 1.57 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester insulator body provides structural stability
• Panel mount vertical installation style facilitates chassis integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation interfaces
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC datasheet to confirm exact plating thickness and flange configurations. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm RoHS compliance status as per the latest manufacturer documentation. Cross-reference the 58-position count to avoid substitution errors with similar series components.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required for panel-mounted applications. The 3.96 mm pitch accommodates larger signal traces compared to finer pitches. Verify that the 5 A current rating meets the system's electrical requirements. Consider the vertical mounting angle for space-constrained chassis designs where board-to-board height is limited.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options. The 305-058-520-512 specifically addresses the need for a 58-position dual-edge connector with a 0.156 inch pitch. It is distinct from single-edge variants and different pitch options within the broader EDAC portfolio.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 58-position count, 3.96 mm pitch, and dual female configuration. Verify mechanical dimensions for panel cutouts and mounting holes. Contact material and plating specifications should be equivalent to maintain electrical performance. Consult EDAC for updated cross-reference lists if original stock is unavailable.
