305-058-521-202

Edgeboard Connectors Overview

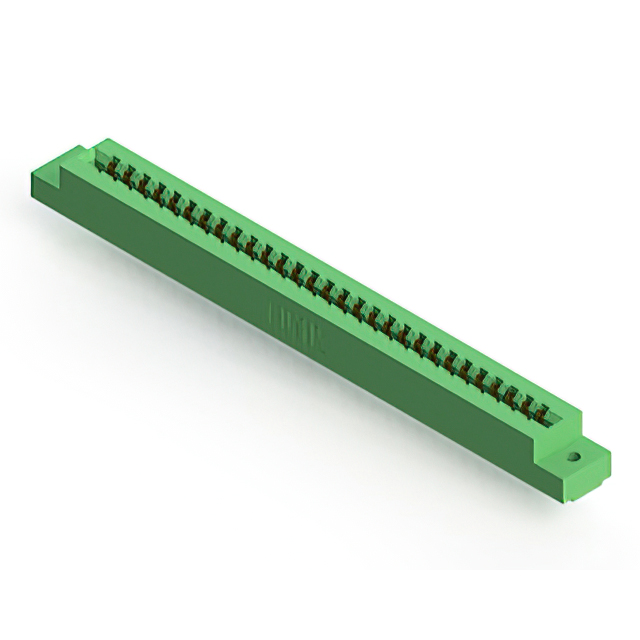

The EDAC Inc. 305-058-521-202 is a standard card edge connector designed for dual-edge board insertion. It features 58 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. Rated for 5 A continuous current and 1800 VACrms insulation, it employs a solder pin termination style for secure panel mounting. The housing is constructed from green thermoplastic material, providing durability and environmental protection for vertical installation applications.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for precise alignment
• Dual-edge design facilitates secure connection to double-sided circuit boards
• Gold-plated contacts provide high conductivity and long-term reliability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Medical device instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating, housing color, and termination type. Ensure the target PCB thickness matches the 1.57 mm specification. Confirm that the polarizing key requirements align with the system design before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required. The 58-position count suits moderate-density interface needs. Verify compatibility with existing polarizing key systems if mechanical locking is necessary. Consider the 5 A current rating for power distribution capabilities within the assembly constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options tailored for panel mount applications. The 305 series is engineered for high-reliability environments, utilizing thermoplastic housings and copper alloy contacts. This specific model represents a mid-range density option within the broader product family.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for cross-reference recommendations if this specific configuration is unavailable.
