305-060-500-212

Edgeboard Connectors Overview

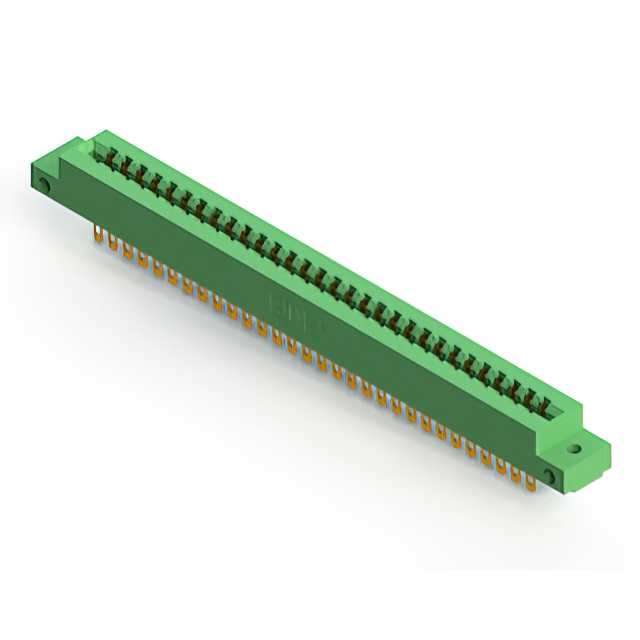

The EDAC Inc. 305-060-500-212 is a standard card edge connector featuring 60 positions arranged in two rows. It utilizes a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The component accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). It employs gold-plated copper alloy contacts and a thermoplastic insulator body, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration designed for high-density signal transmission
• Low-profile insulator body construction for compact panel integration
• Gold-plated contacts ensure reliable electrical connectivity

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific suffix designation against the manufacturer's current documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm prior to integration. Confirm that the required operating temperature range aligns with the system's environmental constraints.

Edgeboard Connectors Selection Notes

Select this model when a dual-row interface with 60 positions is required. The 3.96 mm pitch suits applications needing wider spacing than standard 2.54 mm connectors. Verify that the panel mount style fits the enclosure design. Consider the 5 A current rating for power distribution needs within the system architecture.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-060-500-212 variant specifically addresses the need for a 60-position dual-row interface with a 3.96 mm pitch.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 305-060-500-501 or 305-060-520-212 for similar specifications. Verify that alternative parts match the 60-position count, 3.96 mm pitch, and dual-row layout before substitution.
