305-060-520-202

Edgeboard Connectors Overview

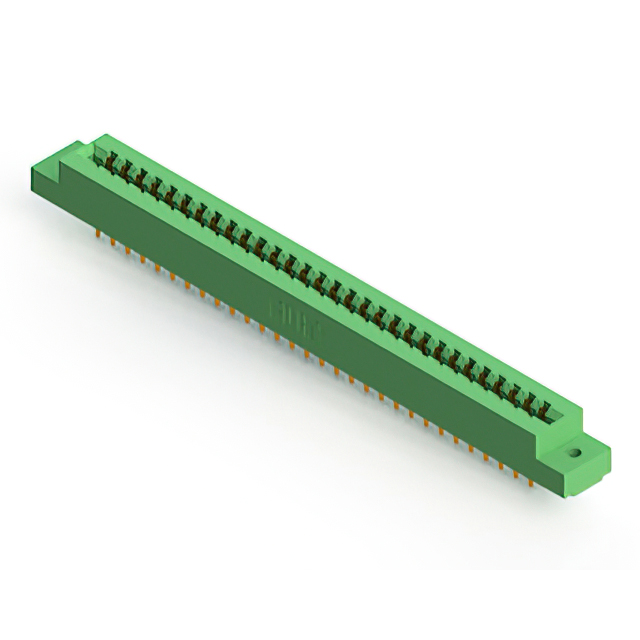

The EDAC Inc. model 305-060-520-202 is a standard card edge connector from the 305 series, designed for panel mount and through-hole installation. It features a dual female configuration with 60 positions arranged in two rows. The connector utilizes a 0.156-inch (3.96 mm) pitch and supports a board thickness range of 0.054 to 0.070 inches (1.37 to 1.78 mm). Contacts are made of copper alloy with a gold finish, rated for 5 A current at an insulation resistance of 5 GOhms. The operating temperature range spans from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design accommodates non-specified card types
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic housing provides structural integrity within specified thermal limits

Edgeboard Connectors Applications

• Medical interconnect solutions including ventilators and CPAP machines
• Ambulance communication and monitoring systems
• General industrial control panels requiring high-density connections

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the specific suffix matches the required pin count and termination style. Ensure compliance with RoHS standards as indicated in the product specifications. Validate that the supplier provides traceable origin data consistent with the manufacturer's records before finalizing acquisition.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with 60 positions is required for vertical panel mounting. The 3.96 mm pitch dictates compatible PCB edge layouts. Verify that the target circuit board thickness falls within the 1.37 to 1.78 mm operational window. Consider the 5 A current rating and thermal range for environmental suitability in medical or industrial settings.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts while maintaining consistent mechanical and electrical characteristics. The 305-060 variant specifically addresses applications needing higher density connectivity compared to lower-position counterparts within the same family.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series parts with matching 60-position configurations and identical 3.96 mm pitch specifications. Ensure any replacement maintains the dual female gender and gold contact finish requirements.
