305-060-556-502

Edgeboard Connectors Overview

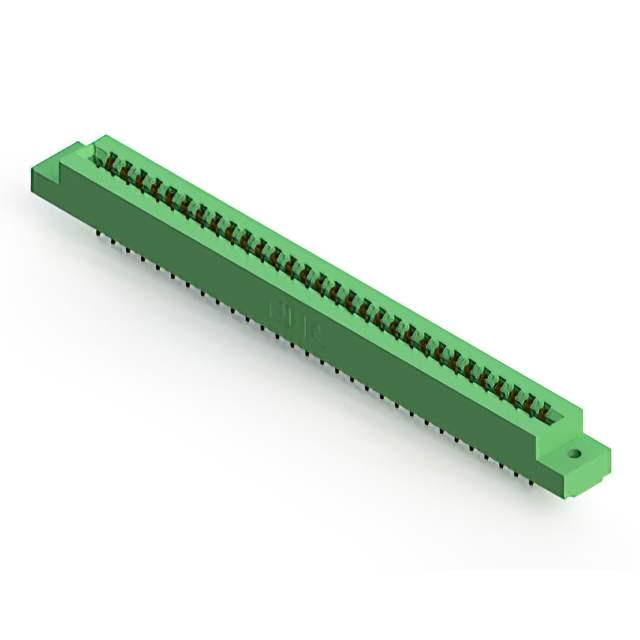

The EDAC Inc. 305-060-556-502 is a dual-side female card edge connector designed for through-hole mounting. It features 60 positions with a 0.156-inch (3.96 mm) pitch across two rows. The connector utilizes gold-plated contacts and a green thermoplastic polyester insulator, supporting PCB thicknesses of 1.57 mm. Rated for 5 A current at +105°C maximum operating temperature, it complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-side female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides thermal stability up to 105°C
• Through-hole solder termination ensures robust mechanical attachment

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane integration
• Automotive electronic module interconnects
• Medical device circuit board assembly

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to confirm specific plating thickness and flange characteristics. Confirm RoHS3 compliance status and mating PCB thickness requirements against design specifications. Ensure ordering quantities align with manufacturer standard packaging constraints.

Edgeboard Connectors Selection Notes

Select this component when a 60-position dual-row connection is required with a 3.96 mm pitch. Verify that the target printed circuit board thickness matches the 1.57 mm specification. Consider the 5 A current rating and 105°C temperature limit for environmental suitability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, providing standardized interfaces for edgeboard applications. The 305-060 variant specifically addresses high-density connectivity needs within this product family.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 305-series variants such as 305-048-556-508 or 305-038-520-502 for different position counts. Verify dimensional compatibility and electrical ratings before substituting with generic equivalents.
