305-060-556-503

Edgeboard Connectors Overview

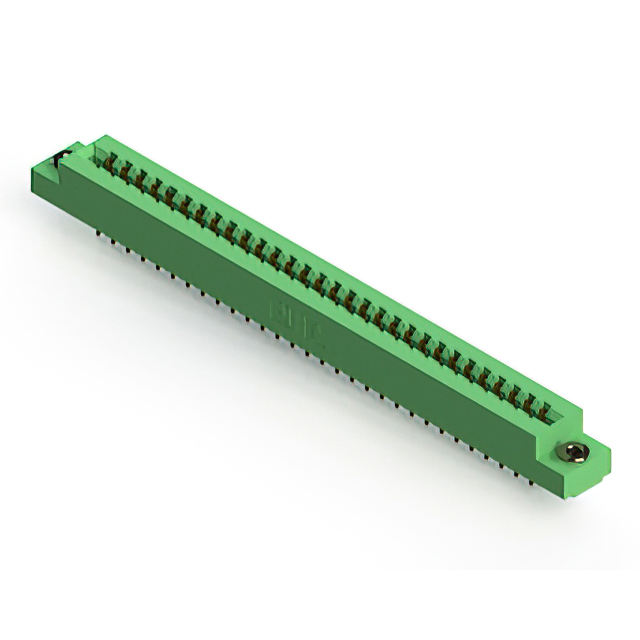

The EDAC Inc. 305-060-556-503 is a standard card edge connector designed for dual-edge mating applications. It features 60 positions with a pitch of 0.156 inches (3.96 mm). The component utilizes gold-plated contacts on a copper alloy substrate to ensure reliable signal transmission. It supports a maximum current rating of 5 A and operates within a temperature range of -40°C to +105°C. The housing is constructed from green thermoplastic, providing necessary insulation and mechanical stability.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated contacts on copper alloy for corrosion resistance
• Thermoplastic insulator rated for high-temperature environments

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• High-density circuit board assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count and termination style. Ensure compatibility with the target PCB thickness and panel mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-row interface with a 3.96 mm pitch is required. Confirm that the application environment stays within the specified thermal limits and that the 5 A current capacity meets the electrical load requirements of the connected circuitry.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options, utilizing consistent dimensional standards for easy integration into existing electronic hardware designs requiring robust vertical connections.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series variants such as 305-068-556-503 or 305-070-556-568, provided the position count matches the design requirements.
