305-062-500-212

Edgeboard Connectors Overview

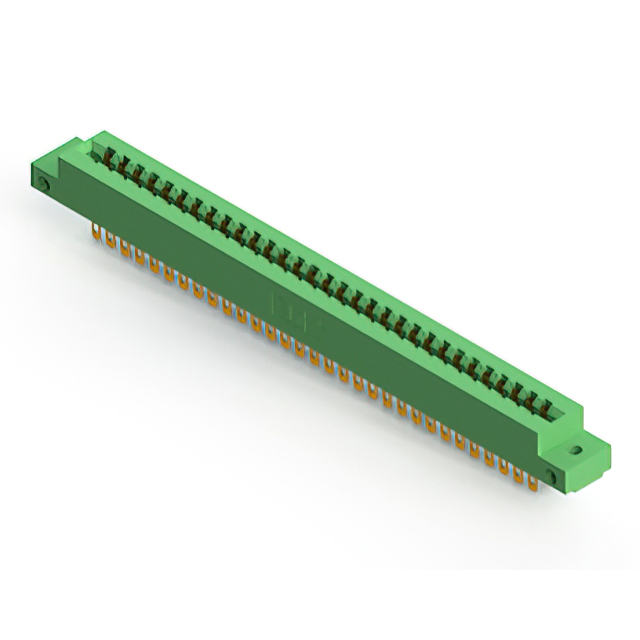

The EDAC Inc. 305-062-500-212 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 62 positions arranged in two rows with a 3.96 mm (0.156 inch) pitch. The connector supports a maximum PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. Contacts are made of copper alloy with gold plating, while the housing is constructed from green thermoplastic.

Edgeboard Connectors Feature Summary

• Dual-row configuration for high-density signal routing
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic housing material for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact contact finish, housing color, and termination style variations. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the 3.96 mm pitch aligns with the design rules of the mating card edge. Cross-reference the manufacturer part number directly with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge interface is required with a 3.96 mm pitch. The 62-position count suits applications needing moderate channel density. Verify that the vertical panel mount style fits the enclosure constraints. Ensure the operating temperature range of -40°C to +105°C meets environmental requirements. Confirm that the 5 A current rating is sufficient for the power distribution needs of the application.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options. The 305-062-500-212 specifically denotes a 62-position dual-row variant. It is distinct from single-row or different pitch alternatives within the broader EDAC portfolio. The numbering convention indicates specific physical and electrical characteristics defined by the manufacturer.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 62-position count, 3.96 mm pitch, and dual-row layout. Verify that alternative parts support the same 1.57 mm PCB thickness and vertical mounting style. Check for identical current ratings and temperature ranges. Consult EDAC technical resources for approved cross-references or pin-compatible alternatives.
