305-062-520-202

Edgeboard Connectors Overview

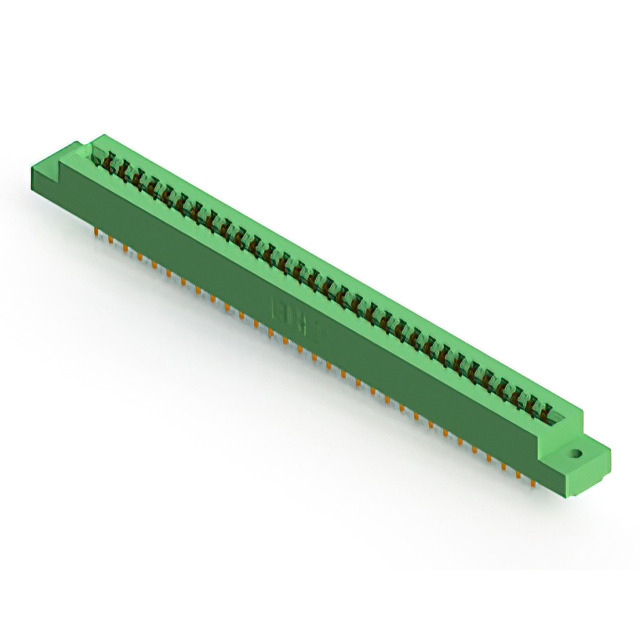

The EDAC Inc. 305-062-520-202 is a standard card edge connector from the 305 series, designed for dual female contact configurations with 62 positions. It features a 3.96 mm (0.156 inch) pitch and supports board thicknesses ranging from 1.37 mm to 1.78 mm. The connector utilizes gold-plated copper alloy contacts and thermoplastic polyester insulation, rated for 5 A current and operating between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides durable insulation
• Supports panel mount and through-hole termination methods

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to confirm exact pin count, termination style, and flange specifications. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-row interface is required with a 3.96 mm pitch. Consider the 5 A current rating and temperature range for environmental suitability. Verify that the panel mount or through-hole installation method aligns with the mechanical design constraints of the host assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in modular electronic systems. The series offers various position counts and termination options, providing flexibility for different board densities and mechanical integration needs within industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or termination styles. Verify mechanical dimensions and electrical ratings match before substituting.
