305-062-521-201

Edgeboard Connectors Overview

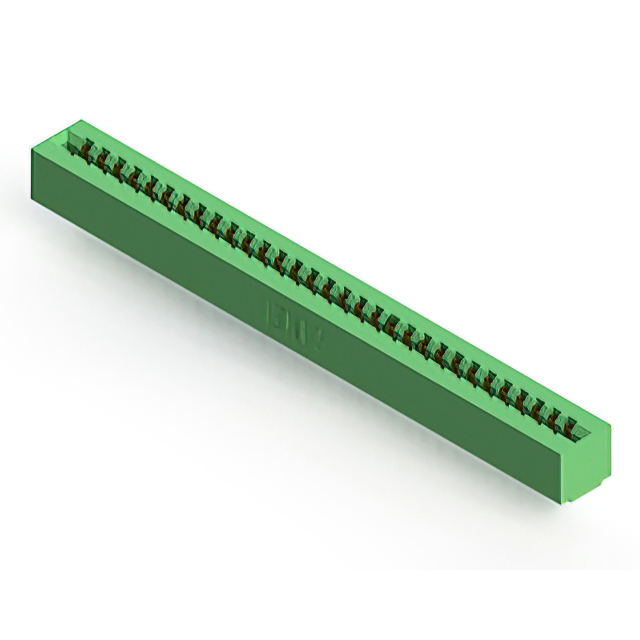

The EDAC Inc. 305-062-521-201 is a standard card edge connector designed for dual-row applications. It features 62 positions with a 0.156-inch (3.96 mm) pitch. The connector utilizes female contacts and supports straight mounting configurations. It employs solder pin termination for secure board attachment. The insulator material is thermoplastic, presented in green color. This component is rated for a maximum operating temperature of +105°C and a minimum of -40°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density signal routing
• Thermoplastic insulator housing providing structural stability
• Solder pin termination ensuring reliable electrical connection

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Medical device internal circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and insulator color variants. Ensure compatibility with the target PCB card thickness specifications before integration. Confirm RoHS compliance status through official manufacturer documentation or authorized distributor channels prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this model when a dual-row card edge connector with a 3.96 mm pitch is required. Consider the vertical mounting style and solder pin termination method for panel installation. Evaluate the thermal range limits against the operational environment requirements to ensure long-term reliability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series, which specializes in standard card edge connectors. The series offers various position counts and pitch options to accommodate different board designs. The 305 series is widely used in applications demanding durable and reliable interconnect solutions.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 305-062-521-208, which shares similar mechanical and electrical characteristics. Verify dimensional drawings and contact specifications before substituting.
