305-062-555-202

Edgeboard Connectors Overview

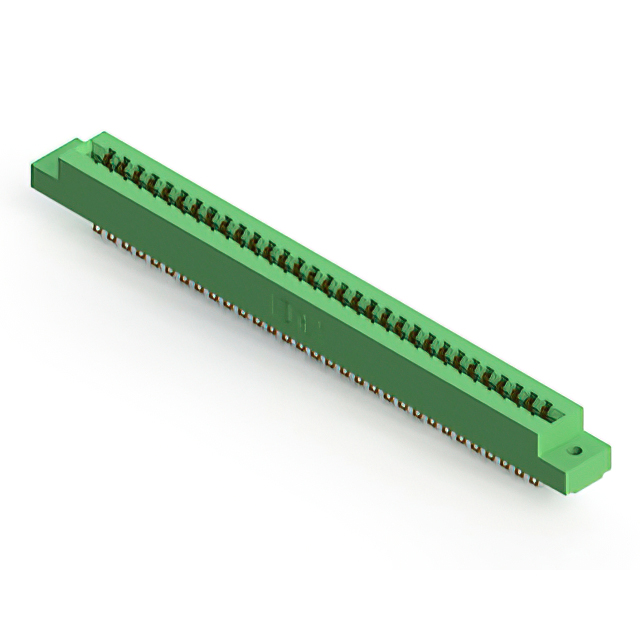

The EDAC Inc. 305-062-555-202 is a standard card edge connector header featuring 62 positions with a 3.96 mm pitch. Designed for dual-edge board insertion, it utilizes gold-plated copper alloy contacts and a thermoplastic insulator body. The component supports panel mounting at a vertical angle and employs solder lug termination. It is rated for 5 A current and operates within a temperature range of -40 °C to +105 °C.

Edgeboard Connectors Feature Summary

• Dual-edge card edge interface design
• Gold-plated copper alloy contact system
• Vertical panel mount configuration

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the required contact spacing, board thickness, and termination style match the target application specifications before procurement.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection is required for double-sided PCBs. Verify that the mechanical constraints allow for vertical panel mounting and that the thermal environment remains within the specified operating limits.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and termination options for reliable interconnection in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Cross-reference pin count, pitch, and mounting style to ensure functional equivalence.
