305-062-555-258

Edgeboard Connectors Overview

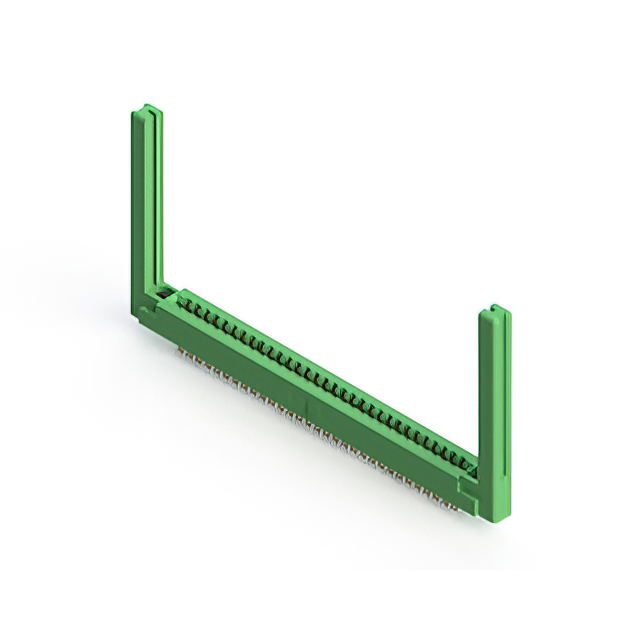

The EDAC 305-062-555-258 is a standard card edge connector from the 305 series, designed for panel mount applications. It features a dual female configuration with 62 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and accommodates board thicknesses of 1.57 mm. Contacts are constructed from copper alloy with gold plating, rated for 5 A continuous current. The insulator is made of thermoplastic material, providing an insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure board-to-board interface
• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
• Thermoplastic insulator housing provides structural integrity and electrical isolation
• Panel mount vertical installation style facilitates robust mechanical attachment

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Automotive electronic control unit interfaces

Edgeboard Connectors Procurement Notes

Verify part number accuracy against official EDAC documentation before procurement. Confirm that the specific suffix matches the required contact termination and housing color specifications. Ensure compatibility with existing panel mounting hardware and PCB design guidelines. Check for RoHS compliance status if required by project regulations. Validate supply chain availability through authorized distributors.

Edgeboard Connectors Selection Notes

Select this component when a high-current, dual-row card edge connector is required for panel-mounted applications. The 3.96 mm pitch suits larger industrial boards. Verify that the target PCB thickness aligns with the 1.57 mm specification. Consider the 5 A current rating for power distribution needs. Ensure the vertical orientation fits within the enclosure constraints.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various position counts and termination options. The series is known for durability in harsh environments. Similar models include 305-022-556-568 and 305-062-555-278, differing in position count or termination type. The 305 series supports both single and dual row configurations with varying contact materials.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult EDAC technical support for direct replacements or cross-reference with similar series components like the 315 series if form factor adjustments are permissible.
