305-062-555-504

Edgeboard Connectors Overview

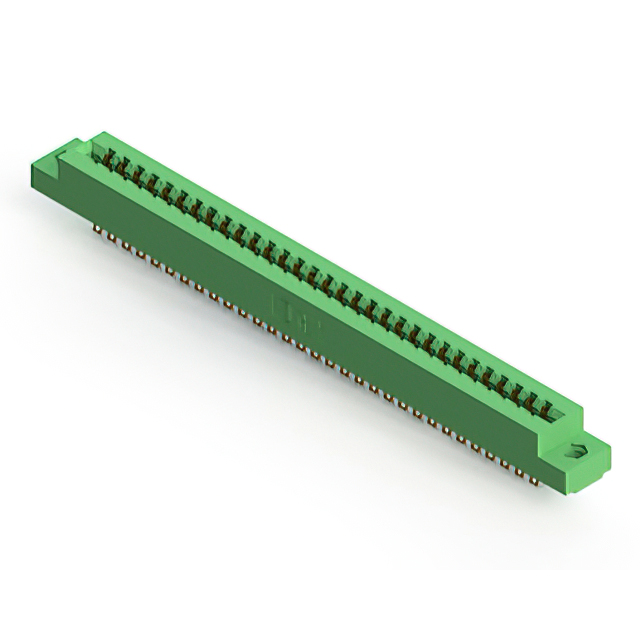

The EDAC Inc. 305-062-555-504 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 62 positions with a 3.96 mm (0.156 inch) pitch and a 3.56 mm row spacing. The connector utilizes female half-beehive contacts with gold plating on copper alloy terminals. It supports PCB thicknesses between 1.37 mm and 1.78 mm and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration for high-density signal routing
• Gold-plated half-beehive contacts for reliable connection
• Panel mount design with vertical orientation

Edgeboard Connectors Applications

• High-density electronic interconnect systems
• Industrial control panel mounting
• Vertical circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific pin count and contact configuration against the official EDAC datasheet before procurement. Confirm that the required PCB thickness falls within the specified 1.37 mm to 1.78 mm range. Ensure the application environment remains within the -40°C to 105°C operating temperature limits. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required. The 62-position capacity suits applications needing extensive I/O in a compact footprint. Verify compatibility with the target PCB thickness and panel mounting requirements. Consider the gold-plated contacts for corrosion resistance in demanding environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which offers various mounting styles and position counts. The series is characterized by its robust construction and standardized dimensions. The 305-062-555-504 specifically addresses needs for dual-edge connectivity with a fixed 62-pin layout.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for compatible substitutes. Alternative part numbers may differ in position count or mounting style while maintaining the same pitch.
