305-062-555-512

Edgeboard Connectors Overview

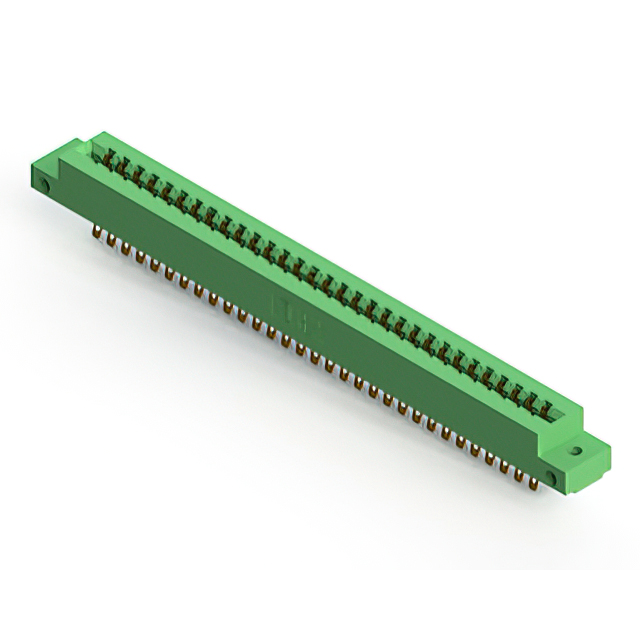

The EDAC Inc. 305-062-555-512 is a standard card edge connector from the 305 Series, designed for dual-row applications. It features 62 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes female contacts made of copper alloy with gold plating and employs surface mount termination. It is rated for 5 A current and operates within a temperature range of -40°C to 105°C. The housing is constructed from green thermoplastic polyester, accommodating board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual-row configuration supporting non-specified dual-edge circuit boards
• Gold-plated copper alloy contacts ensure reliable electrical performance
• Surface mount termination facilitates automated PCB assembly
• Thermoplastic polyester insulator provides structural stability

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Computing hardware module attachment points
• Test and measurement instrument signal routing

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required termination style and contact count. Confirm compatibility with the target printed circuit board thickness specifications. Ensure the selected variant aligns with the intended mounting orientation and environmental operating conditions. Cross-reference the manufacturer datasheet for precise mechanical dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge solution with surface mount capabilities is required. The 3.96 mm pitch accommodates standard board layouts while providing sufficient contact density. Consider the 5 A current rating and thermal performance limits for high-power applications. Verify that the gold plating meets corrosion resistance requirements for the operational environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which offers various configurations for card edge connectivity. The series supports multiple row counts and termination styles to suit diverse electronic design needs. The 305-062-555-512 specifically addresses applications requiring 62-position dual-row interfaces with robust mechanical and electrical characteristics.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-references. Verify equivalent parts based on matching pitch, position count, and termination type.
