305-064-500-502

Edgeboard Connectors Overview

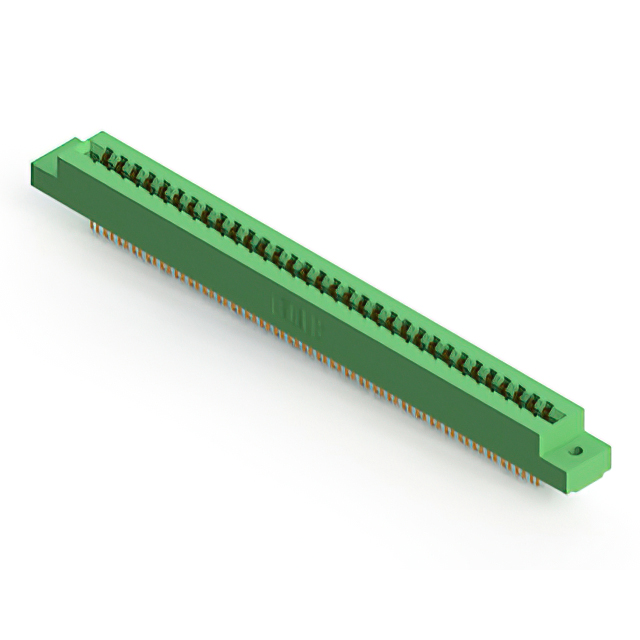

The EDAC Inc. 305-064-500-502 is a standard card edge connector from the 305 series, designed for dual female contact configurations. It features 64 positions with a 3.96 mm (0.156 inch) pitch across two rows. The unit utilizes gold-plated copper alloy contacts and a thermoplastic housing. Rated for 5 A current, it supports panel mounting at a vertical angle. The connector accommodates board thicknesses between 1.37 mm and 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density signal routing
• Gold-plated copper alloy terminals ensure reliable electrical conductivity
• Thermoplastic insulation material provides structural stability
• Vertical panel mounting style facilitates secure installation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 64-position count and 3.96 mm pitch before integration. Confirm compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Ensure the procurement channel sources genuine EDAC components to guarantee RoHS compliance and material specifications. Cross-reference the ordering guide for any suffix variations affecting flange or termination details.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. The 64-position layout suits applications needing moderate pin counts in a compact footprint. Verify that the vertical panel mount orientation aligns with the mechanical enclosure design. Consider the 5 A current rating and operating temperature limits against the system's thermal and power requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various position counts and mounting options. The series is characterized by its standardized 3.96 mm pitch and robust construction. Similar models in the lineup include different pin counts such as 38 or 50 positions, allowing designers to scale connectivity needs while maintaining consistent mechanical and electrical characteristics across the product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and row configuration but different pin counts, such as 305-050-556-502 or 305-038-520-502. Verify that alternative numbers match the specific mounting style and contact plating requirements. No other manufacturer part numbers are confirmed as direct replacements based on available data.
