305-068-500-212

Edgeboard Connectors Overview

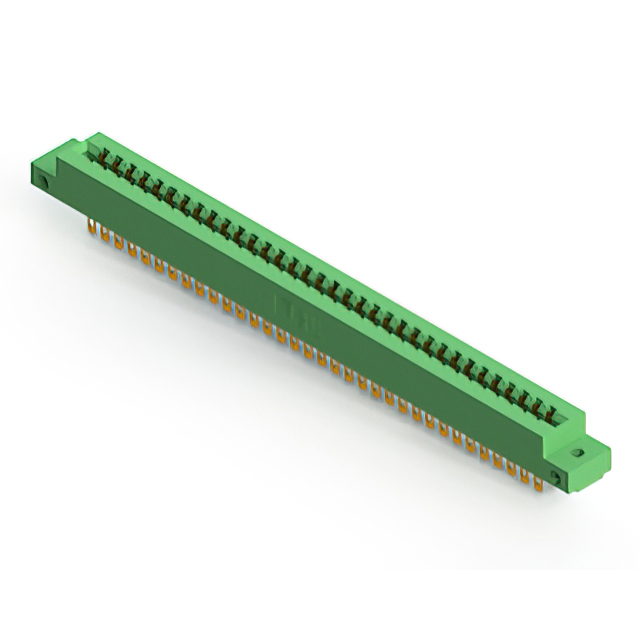

The EDAC Inc. 305-068-500-212 is a standard card edge connector from the 305 Series, designed for panel mount applications. It features 68 positions arranged in two rows with a 3.96 mm pitch. The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts for reliable signal transmission. Rated at 5 A current, it employs a solder pin termination method. The housing is constructed from thermoplastic polyester, providing durability and insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row configuration with 68 positions for high-density interconnects
• Gold-plated copper alloy contacts ensure corrosion resistance and stable conductivity
• Thermoplastic polyester housing provides structural integrity and electrical insulation
• Panel mount design with vertical orientation for secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard board thicknesses
• Test and measurement devices needing reliable high-pin-count connections
• Automotive electronics modules with specific thermal requirements

Edgeboard Connectors Procurement Notes

Verify the exact suffix code to confirm contact plating and housing material specifications, as minor variations exist within the 305 series. Confirm that the target PCB design accommodates the 1.57 mm thickness constraint and 3.96 mm pitch. Ensure compatibility with panel mounting hardware specified for vertical orientation. Cross-reference the manufacturer's latest datasheet for any updates on RoHS compliance or material changes before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with 68 positions is required for panel-mounted applications. The 3.96 mm pitch and 1.57 mm board thickness support are critical constraints. Choose this part over single-row alternatives if higher density is needed without increasing footprint. Verify that the 5 A current rating meets the circuit requirements and that gold plating is necessary for the environmental conditions.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 Series, which specializes in standard card edge connectors. The series offers various position counts and row configurations to suit different interface needs. The 305-068-500-212 variant specifically addresses applications requiring a high number of connections in a compact panel-mount form factor, leveraging the series' established reliability and standardized dimensions.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and row count but different position numbers, such as 305-048-500-212 or 305-068-500-512, provided the position count matches. Verify that any replacement maintains the 3.96 mm pitch, 1.57 mm board thickness, and gold-plated contact finish to ensure mechanical and electrical compatibility.
