305-068-500-512

Edgeboard Connectors Overview

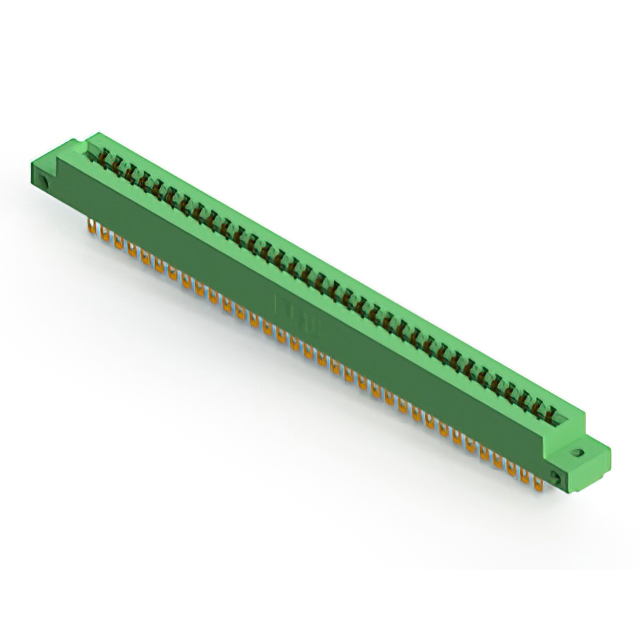

The EDAC Inc. 305-068-500-512 is a standard card edge connector featuring 68 positions arranged in a dual configuration with two rows of 34 positions each. It utilizes a 0.156-inch (3.96 mm) pitch and supports a card thickness range of 0.054 to 0.070 inches (1.37 to 1.78 mm). The connector employs gold-plated copper alloy contacts for reliable signal transmission and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration designed for non-specified double-sided edge cards
• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Thermoplastic polyester insulation provides structural stability and environmental resistance
• Flush-mounted flange design facilitates secure panel installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation with high-reliability interconnect needs

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm compatibility with required flange features and termination styles. Ensure that the selected variant matches the intended PCB mounting orientation and card thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for panel-mount applications. Confirm that the target circuit board thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper mechanical engagement and electrical performance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which specializes in standard card edge connectors. The series offers various position counts and configurations, providing engineers with standardized solutions for connecting double-sided edge cards to system backplanes or chassis panels in industrial environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 Series ordering guide to identify compatible substitutes. Verify that alternative parts maintain identical pitch, row count, and contact plating specifications to ensure functional interchangeability without redesigning the host assembly.
