305-068-555-212

Edgeboard Connectors Overview

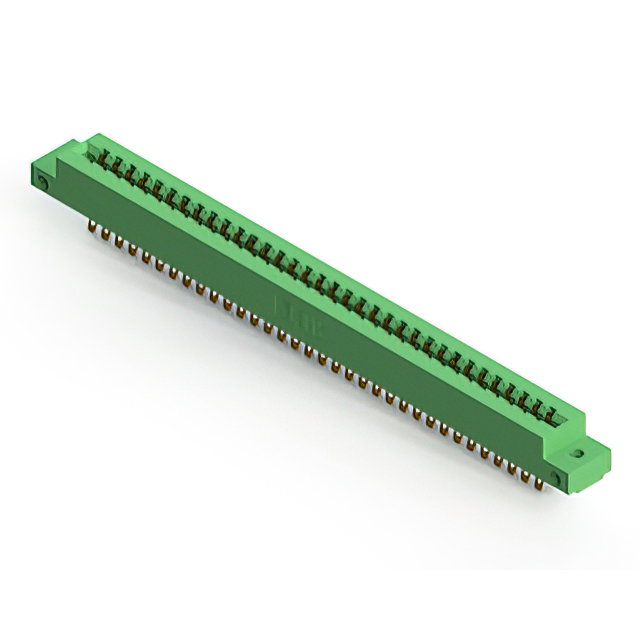

The EDAC 305-068-555-212 is a standard card edge connector from the 305 series, designed for dual-row applications. It features 68 positions with a 3.96 mm pitch and a row spacing of 3.56 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. It supports a continuous current rating of 5 A and withstands voltages up to 1800 VACrms. The housing is constructed from thermoplastic material, providing durability in demanding environments. Designed for panel mounting, it accommodates PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Dual-edge female configuration for robust board-to-board connectivity
• Gold-plated contacts on copper alloy substrate for enhanced conductivity

Edgeboard Connectors Applications

• Industrial control systems requiring high-voltage isolation
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics needing durable panel-mounted connections

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 68-position count and 3.96 mm pitch before procurement. Confirm compatibility with polarizing keys if mechanical locking is necessary for the assembly. Ensure the target PCB thickness aligns with the 1.57 mm specification to guarantee proper contact engagement. Check RoHS compliance requirements against project specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. The 5 A current rating and 1800 VACrms voltage capability make it suitable for power and signal distribution in industrial settings. Consider the vertical panel mount style and thermoplastic housing for environmental resistance. Verify that the 68-position layout fits the available space on the mating card edge.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which specializes in standard card edge solutions. The series offers various position counts and mounting options while maintaining consistent electrical performance. The 305-068-555-212 variant specifically addresses applications requiring a higher density of connections with a dual-row arrangement. It complements other components in the EDAC portfolio by providing reliable interconnectivity for printed circuit boards.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 305 series connectors with matching 68 positions and 3.96 mm pitch. Verify that any alternative maintains the same 3.56 mm row spacing and panel mount orientation. Ensure the replacement supports the required 5 A current rating and 1800 VACrms insulation voltage.
