305-068-555-512

Edgeboard Connectors Overview

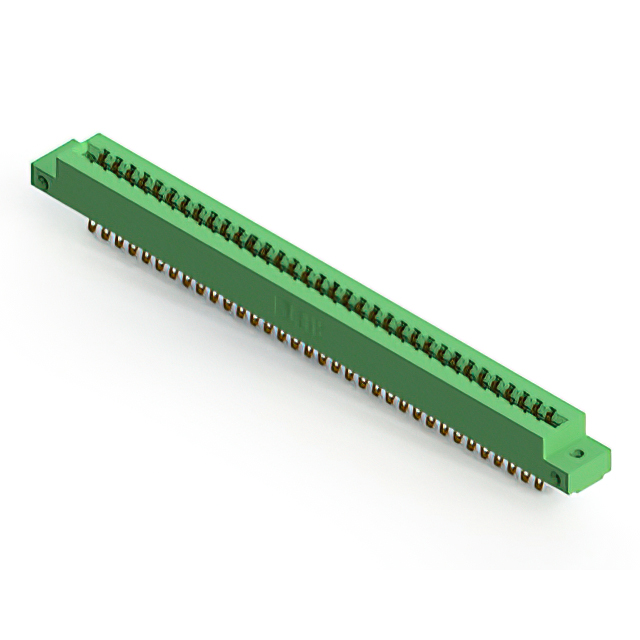

The EDAC Inc. 305-068-555-512 is a standard card edge connector from the 305 series, designed for panel mounting with a vertical orientation. It features 68 positions in a dual-row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and accepts PCBs with a thickness of 1.57 mm. Rated for 5 A continuous current and 1800 VACrms, it supports between-contact and in-contact polarizing keys.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys
• Dual female contact configuration for non-specified card edges
• Gold-plated copper alloy contacts for reliable conductivity

Edgeboard Connectors Applications

• Industrial control systems requiring polarized connections
• Medical interconnect solutions
• Agricultural technology equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm exact pin count, plating thickness, and insulation color. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region. Ensure the selected variant matches the required PCB thickness and mounting style specifications.

Edgeboard Connectors Selection Notes

Select this component when a 68-position dual-edge connector with a 3.96 mm pitch is required. It is suitable for applications needing polarizing key compatibility and high voltage isolation. Verify that the target PCB thickness aligns with the 1.57 mm specification and that the vertical panel mount style fits the enclosure design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations, all sharing common mechanical dimensions and electrical ratings. The 305 series is widely used in industrial and medical applications where robust connectivity and polarization options are essential.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 305-068-556-508 and 305-068-556-568. These variants share identical mechanical and electrical specifications but differ in contact termination type or plating details. Verify specific suffix requirements before substitution.
