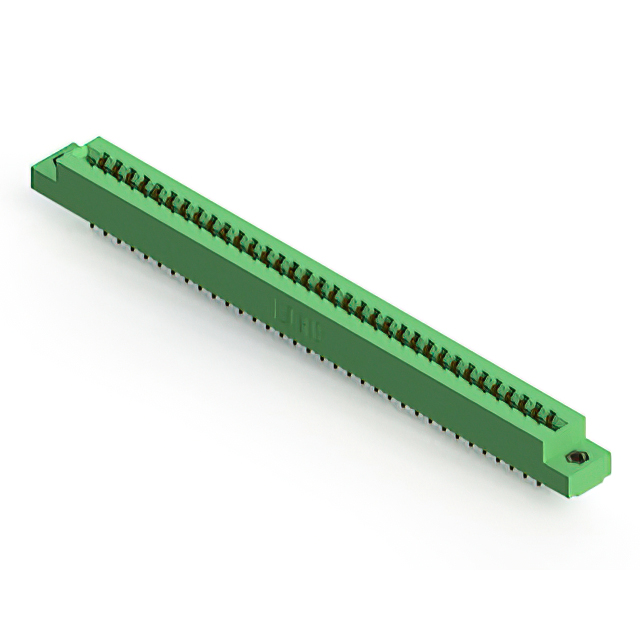

305-068-556-207

$13.73

Description：CONN EDGE DUAL FMALE 68POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:a29dbbd51c0c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-068-556-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 68POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-068-556-207

Description：CONN EDGE DUAL FMALE 68POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：34
Number of Positions：68
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-068-556-207

305-068-556-207

Edgeboard Connectors Overview

The EDAC Inc. 305-068-556-207 is a standard card edge connector from the 305 series, designed for dual-edge board interfaces. It features 68 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum PCB thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current, and utilize through-hole solder pin termination. This vertical panel-mount header provides reliable interconnection for specified card edge applications.

Edgeboard Connectors Feature Summary

Dual-edge configuration for non-specified card types
Gold-plated copper alloy contacts for corrosion resistance
Vertical panel mount installation style
Through-hole solder pin termination

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Medical equipment interface modules
Agricultural technology hardware connections
General-purpose electronic assembly boards

Edgeboard Connectors Procurement Notes

Verify RoHS compliance status and specific shipping restrictions prior to ordering, as availability may vary by region. Confirm that the target PCB thickness falls within the 1.57 mm limit. Ensure the design accommodates the vertical orientation and panel mounting requirements specified in the official datasheet.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connector with a 3.96 mm pitch is required. The 68-position count suits high-density applications. Verify compatibility with the intended card edge thickness range of 1.37 mm to 1.78 mm. Consider the 5 A current rating for power distribution needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and pitch options. The 305-068-556-207 specifically addresses the need for a 68-position dual-edge solution with gold contact plating and vertical mounting capabilities.
