305-068-556-512

Edgeboard Connectors Overview

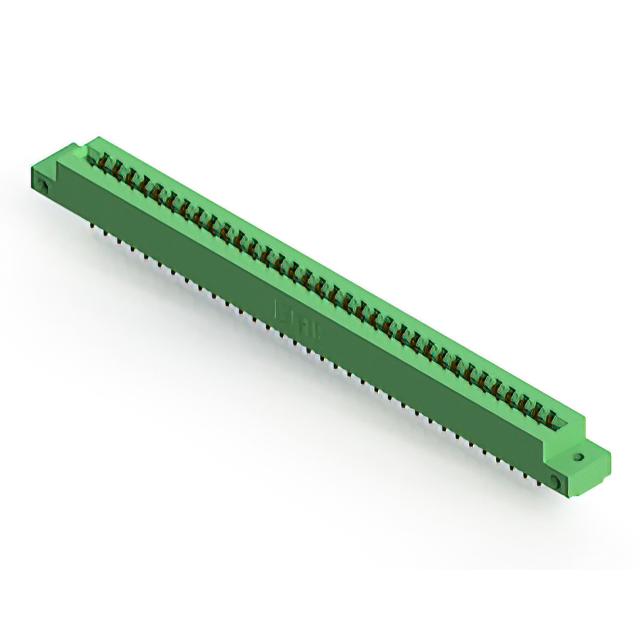

The EDAC Inc. 305-068-556-512 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 68 positions with a 3.96 mm (0.156 inch) pitch and supports a PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts rated for 5 A current. It employs a vertical panel mount style with solder pin termination. The housing is constructed from green thermoplastic polyester, ensuring reliable performance within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board retention
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount configuration with solder pin termination
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Medical device circuit board connections
• Agricultural technology equipment interfaces
• General-purpose electronic module mounting

Edgeboard Connectors Procurement Notes

Verify part number accuracy against official EDAC documentation before procurement. Confirm that the specific suffix matches required mechanical dimensions and contact plating specifications. Ensure compatibility with target PCB thickness and panel cutout requirements. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required. Consider the 68-position count and vertical mounting orientation for panel integration. Evaluate the 5 A current rating and -40°C to +105°C temperature range against operational demands. Verify that the gold-plated contacts meet signal integrity needs for the application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles for diverse electronic applications. The 305-068-556-512 variant specifically addresses needs for dual-edge boards requiring robust vertical panel mounting solutions with high reliability standards.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series parts for alternative position counts. Verify mechanical fit and electrical ratings against competitors like TE Connectivity or Molex equivalents. Ensure substitute components maintain identical pitch, thickness tolerance, and mounting configuration.
