305-070-500-212

Edgeboard Connectors Overview

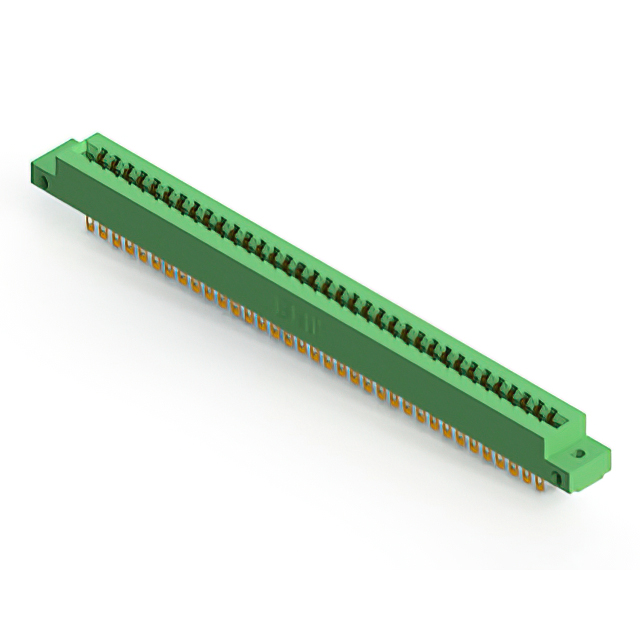

The EDAC Inc. 305-070-500-212 is a standard card edge connector designed for reliable signal communication and power connections. It features a dual-edge configuration with 70 positions arranged in two rows. The connector utilizes gold-plated contacts to ensure low contact resistance and durability. It operates within a temperature range of -40°C to support various environmental conditions. This component serves as a robust interface solution between motherboards, daughter cards, and extenders in electronic assemblies.

Edgeboard Connectors Feature Summary

• Dual-edge design for enhanced connectivity stability
• Gold-plated contacts for corrosion resistance
• Two-row arrangement supporting 70 positions

Edgeboard Connectors Applications

• Motherboard interconnections
• Daughter card interfaces
• Extender board connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm pin count and plating specifications. Ensure compatibility with the target PCB thickness and mating force requirements. Cross-reference the operating temperature range with system environmental constraints before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge card edge interface is required for signal integrity. Consider the 70-position capacity for applications needing moderate I/O density. Evaluate the mechanical fit within the enclosure space and verify that the mating device aligns with the specified row configuration.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of card edge connectors. The series provides engineered solutions for connecting motherboards, daughter cards, and extenders. It is categorized under standard card edge connectors suitable for general electronic assembly needs.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify pinout compatibility and mechanical dimensions before replacing with similar models from other manufacturers.
