305-070-521-568

Edgeboard Connectors Overview

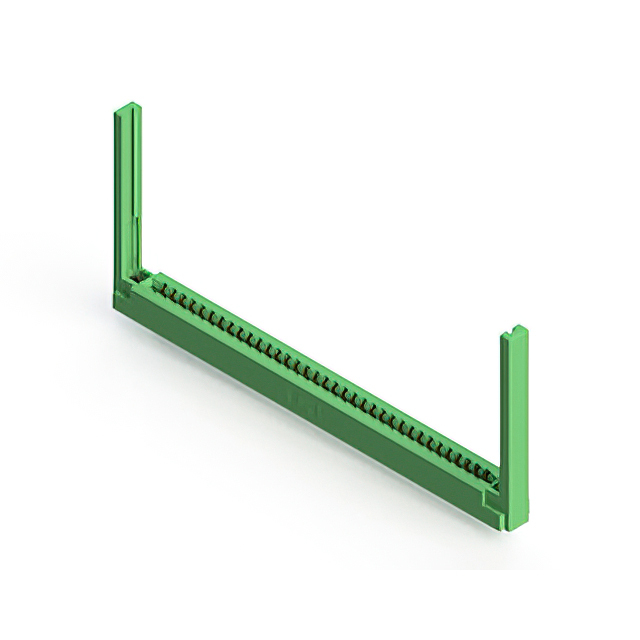

The EDAC Inc. 305-070-521-568 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features a dual female configuration with 70 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and accepts PCBs with thicknesses ranging from 1.37 mm to 1.78 mm (0.054" to 0.070"). Contacts are constructed from copper alloy with gold plating, providing a continuous current rating of 5 A. The unit employs a solder pin termination type and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for non-specified card edge applications
• Gold-plated copper alloy contacts ensure reliable electrical performance
• Panel mount installation style with vertical orientation
• Accepts between-contact and in-contact polarizing keys

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Communication equipment utilizing standardized board connections
• Test and measurement devices needing high-reliability interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact mechanical and electrical specifications. Ensure compatibility with target PCB thickness and polarizing key requirements. Confirm RoHS compliance status through manufacturer datasheets prior to integration into regulated assemblies.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 70-position interface with 3.96 mm pitch is required. Consider the 5 A current rating and 1800 VACrms insulation voltage for appropriate circuit protection. Verify that the panel mount style aligns with the enclosure design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of card edge connectors, which are characterized by their durability and standardized dimensions. The series supports various position counts and mounting styles, catering to diverse electronic assembly needs while maintaining consistent electrical characteristics across the product line.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for verified substitute part numbers. Cross-reference position count, pitch, and termination type to ensure functional equivalence without modifying the host board layout.
