Edgeboard Connectors Overview

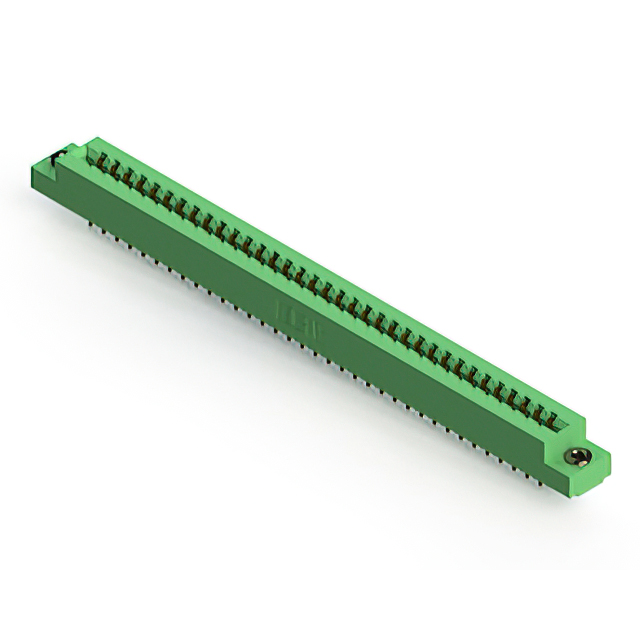

The EDAC Inc. 305-070-556-203 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 70 positions with a 0.156-inch (3.96 mm) pitch and supports a maximum operating temperature of +105°C. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. Rated for 5 A current, it accommodates PCB thicknesses between 1.37 mm and 1.78 mm. This straddle-mount receptacle provides reliable electrical interconnection in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensure corrosion resistance
• Straddle mount installation style for panel integration
• Thermoplastic polyester insulator for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Automotive electronics testing fixtures
• Aerospace instrumentation signal routing

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and mounting variations. Ensure compatibility with target PCB thickness specifications before ordering. Cross-reference RoHS compliance status with current manufacturer declarations. Confirm availability through authorized distributors as lead times may vary based on production schedules.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for high-density signal routing. The 3.96 mm pitch suits applications needing wider spacing than standard micro-connectors. Verify that the 5 A current rating meets system power requirements. Ensure the straddle mount style aligns with chassis design constraints and panel cutout dimensions.

Edgeboard Connectors Part Context

Part of the EDAC 305 series, this connector addresses needs for durable card edge interfaces. The series offers various position counts and mounting options. Designed for industrial-grade performance, it balances mechanical strength with electrical reliability. The 305-070 variant specifically serves applications requiring extensive I/O connections within constrained panel spaces.

Edgeboard Connectors Replacement Considerations

EDAC 305-070-556-204: Similar specification with potential housing material differences. EDAC 305-070-556-502: Alternative version with distinct flange characteristics. Verify dimensional compatibility and electrical ratings before substitution.
