305-072-555-278

Edgeboard Connectors Overview

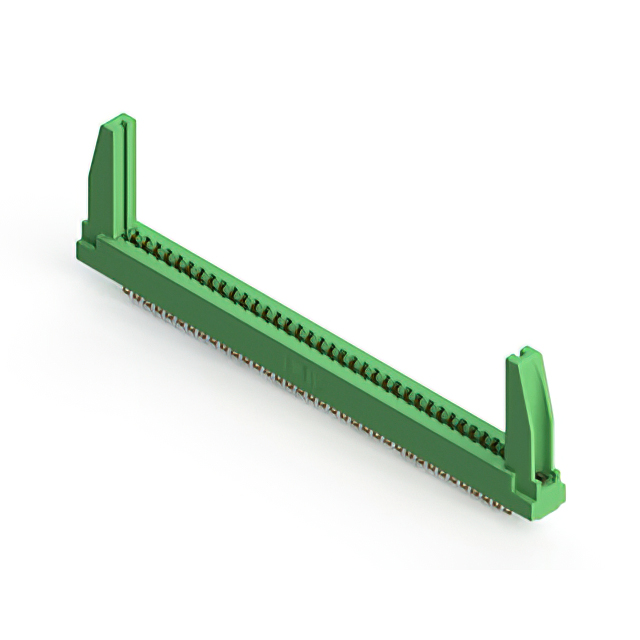

The EDAC Inc. 305-072-555-278 is a standard card edge connector from the 305 Series, designed for PCB mounting in a straight orientation. It features a dual-row configuration with 72 positions and a pitch of 3.96 mm (0.156 inches). The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. It is rated for 5 A current and has an insulation resistance of 5 Gohms. The housing is constructed from thermoplastic polyester, providing durability for industrial applications.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy terminals for enhanced conductivity
• Thermoplastic polyester housing for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring high-density connections
• Communication equipment backplanes
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific plating thickness and material variations. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure compatibility with the target PCB stack-up and card thickness specifications defined in the datasheet.

Edgeboard Connectors Selection Notes

Select this component when a 72-position dual-row interface is required. The 3.96 mm pitch accommodates standard board layouts. Verify that the application environment falls within the specified operating temperature range. Consider the straight mounting style for direct panel or board alignment needs.

Edgeboard Connectors Part Context

This model belongs to the EDAC 305 Series of edgeboard connectors. The series offers various position counts and mounting options. The 305-072 variant specifically addresses high-pin-count requirements. It shares design characteristics with other models in the family while differing in terminal count.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers sharing the same 3.96 mm pitch and 72-position count. Verify mechanical dimensions and contact geometry before substitution. Ensure electrical ratings match the original design requirements.
