307-009-505-103

Edgeboard Connectors Overview

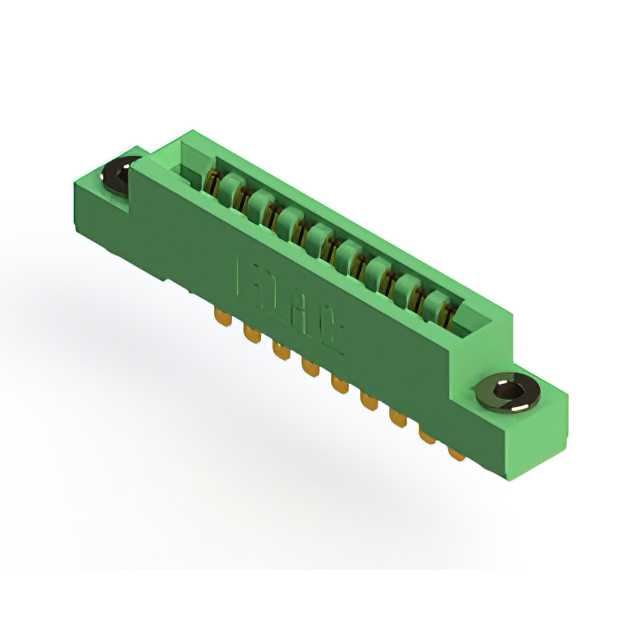

The EDAC Inc. 307-009-505-103 is a single-row card edge connector designed for through-hole mounting. It features 9 positions with a 0.156-inch (3.96mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The connector utilizes female half-bellows contacts made of copper alloy, finished with 10.0µin gold plating. The housing is constructed from green thermoplastic polyester, supporting an operating temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with female half-bellows contact design for reliable signal transmission
• Through-hole termination method ensures secure PCB attachment
• Gold-plated copper alloy contacts provide corrosion resistance and low contact impedance
• Thermoplastic polyester insulation offers stability across the specified temperature range

Edgeboard Connectors Applications

• Industrial control systems requiring robust card-to-board connections
• Telecommunications equipment utilizing standard edgeboard interfaces
• Test and measurement devices needing reliable high-density interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's ordering guide to ensure exact dimensional and material compliance. Confirm that the target printed circuit board thickness falls within the 0.054 to 0.070 inch specification range. Check for RoHS3 compliance status if environmental regulations apply to the final assembly. Ensure the selected variant matches the required single-edge orientation.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with a 3.96mm pitch is required for vertical panel or board mounting. The choice depends on matching the host card's edge geometry and thickness constraints. Consider the thermal rating and contact material if the application involves high-cycle mating or harsh environments. Compare against other series members for position count variations while maintaining the same mechanical footprint.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series, a line of standard card edge connectors. The series provides various position counts and configurations for general-purpose interconnect applications. The 307-009-505-103 represents a specific nine-position variant within this family, sharing common mechanical and electrical characteristics with other models in the series.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 307 series parts with identical pitch and row count, such as 307-009-505-101. Verify cross-compatibility by checking datasheet dimensions and contact specifications before substitution.
