307-015-458-107

Edgeboard Connectors Overview

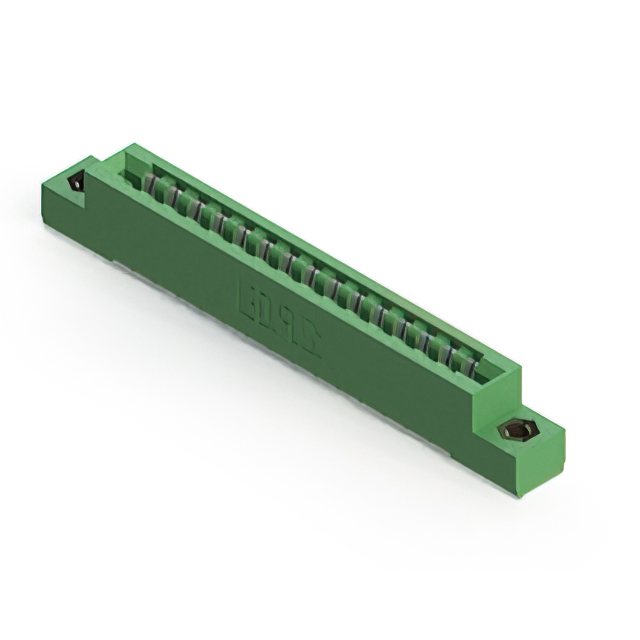

The EDAC Inc. 307-015-458-107 is a standard card edge connector from the 307 Series, designed for panel mount applications. It features 15 positions with a single row configuration and a contact spacing of 3.96 mm (0.156 inches). The unit utilizes a solder pin termination type and accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are constructed from copper alloy with tin plating, rated for 5 A current. The insulator body is made of green thermoplastic polyester.

Edgeboard Connectors Feature Summary

• Accepts PCBs with a nominal thickness of 1.57 mm
• Features low profile insulator body construction
• Utilizes tin-plated copper alloy contacts

Edgeboard Connectors Applications

• Panel-mounted electronic interconnections
• Single-row card edge interface systems
• Industrial control board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and orientation. The model number indicates a tin-plated finish; ensure this aligns with system requirements rather than gold plating. Confirm that the 1.57 mm board thickness specification matches the target PCB design. Check regional availability as distribution status may vary by location.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 15-position connection is required with a 3.96 mm pitch. Ensure the application supports panel mounting and vertical insertion. Verify that the tin contact plating meets environmental and conductivity standards for the intended use case compared to gold-plated alternatives in the same series.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series of standard card edge connectors. The series offers various position counts and configurations, including dual-row options like the 307-042-424-202. The 307-015-458-107 specifically represents a single-row variant within this standardized lineup.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other 307 Series parts with matching 15 positions and 3.96 mm pitch, such as 307-015-458-103, provided the termination style and orientation requirements are met.
