307-030-501-178

Edgeboard Connectors Overview

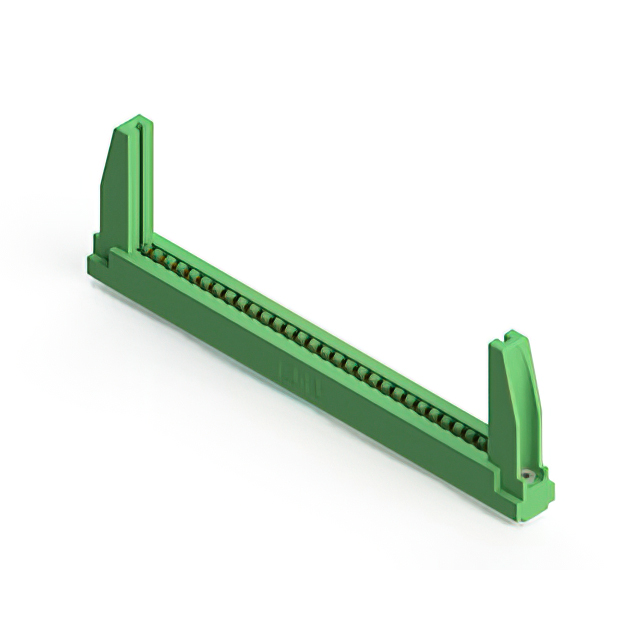

The EDAC Inc. 307-030-501-178 is a standard card edge connector from the 307 series, designed for dual-edge board insertion. It features 60 positions with a contact spacing of 3.96 mm (0.156 inches). The component utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body. It supports PCB thicknesses typically around 1.57 mm and offers a current rating of 5 A per contact. The connector is engineered for panel mount applications with vertical orientation.

Edgeboard Connectors Feature Summary

• Dual-edge design accommodates double-sided circuit board traces for increased signal density.
• Gold-plated contacts ensure reliable conductivity and corrosion resistance in harsh environments.
• Thermoplastic polyester housing provides structural stability and thermal endurance up to +105°C.

Edgeboard Connectors Applications

• Industrial control systems requiring robust I/O connections
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB trace width and panel mounting hardware requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when high-density dual-edge connectivity is required within the 307 series form factor. Confirm that the application environment stays within the -40°C to +105°C operating temperature range and that the PCB thickness aligns with the connector's mechanical acceptance criteria.

Edgeboard Connectors Part Context

This component belongs to the EDAC 307 Series, a line of standard card edge connectors known for their versatility in industrial and commercial electronics. The series offers various position counts and mounting styles, providing engineers with standardized solutions for board-to-board or board-to-panel interconnections.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 307 series variants such as 307-030-401-178 for single-edge alternatives. Verify pin count and pitch compatibility when considering substitutes from other manufacturers to ensure mechanical fit and electrical performance match.
