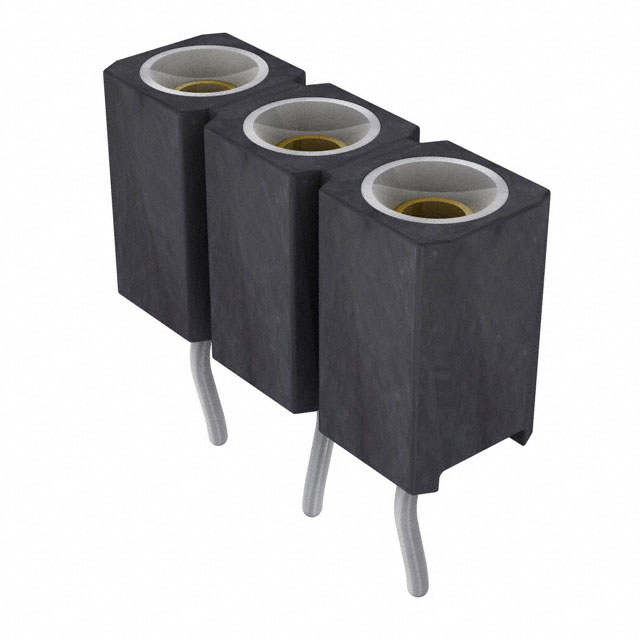

310-87-103-01-754101

$0.23

Description：CONN SOCKET 3POS 0.1 GOLD PCB
Series：310
Mfr：Preci-Dip
Package：Bulk

SKU:6fff58d7c8ac Category: Headers, Receptacles, Female Sockets Brand: Preci-Dip

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

310-87-103-01-754101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN SOCKET 3POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 310-87-103-01-754101

Description：CONN SOCKET 3POS 0.1 GOLD PCB
Series：310
Mfr：Preci-Dip
Package：Bulk
Connector Type：Socket
Contact Type：Female Socket
Style：Board to Board
Number of Positions：3
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Press-Fit, Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：Black
Insulation Height：0.165" (4.20mm)
Contact Length - Post：0.122" (3.10mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 310-87-103-01-754101

310-87-103-01-754101

Headers, Receptacles, Female Sockets Overview

The Preci-Dip 310-87-103-01-754101 is a single-row socket connector featuring three positions with a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, it utilizes gold-plated contacts to ensure reliable signal transmission. The unit supports a current rating of 3 A and operates within a temperature range of -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

Provides secure electrical interconnection via gold-plated contact surfaces.
Features a straight orientation suitable for standard PCB layouts.
Constructed with flame-retardant insulation materials.

Headers, Receptacles, Female Sockets Applications

General-purpose electronic circuit board interconnections
Industrial control system signal routing
Consumer electronics assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and contact plating thickness against official datasheets before procurement. Confirm that the through-hole termination method aligns with your manufacturing process capabilities. Ensure environmental ratings meet operational requirements.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, three-position female connector is required. It is appropriate for applications demanding robust mechanical retention and consistent electrical performance under varying thermal conditions. Consider compatible header counterparts for mating.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 310 series, which specializes in single-row socket connectors. The series offers various position counts and termination styles, providing modular solutions for diverse board-to-board and wire-to-board connectivity needs across multiple industries.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 3-position, 2.54mm pitch sockets from the same manufacturer or equivalent third-party components. Verify dimensional compatibility and electrical ratings before substitution.
