310-87-103-41-105101

Headers, Receptacles, Female Sockets Overview

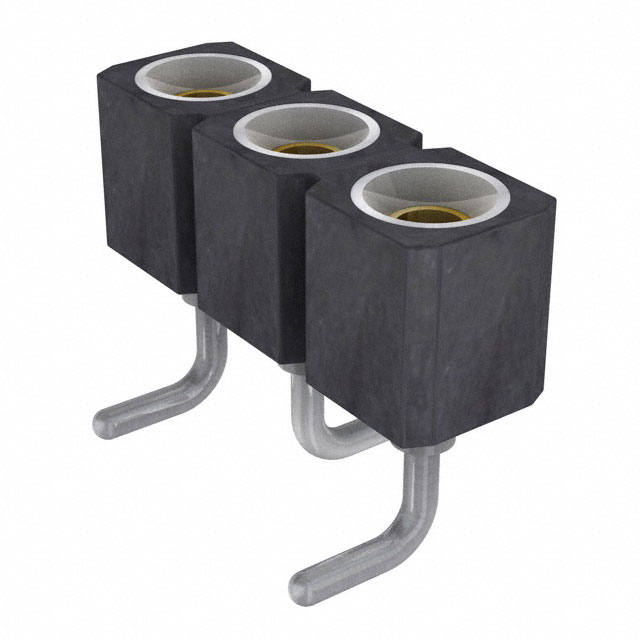

The Preci-Dip 310-87-103-41-105101 is a single-row SIP socket connector designed for surface mount technology. It features 3 positions with a 0.100 inch (2.54mm) mating pitch and a 0.300 inch row spacing. The contacts are made of beryllium copper with gold plating, while the posts utilize brass with tin plating. Rated for 3A current, it operates within a temperature range of -55°C to 125°C. The housing is constructed from glass-reinforced PCT polyester, rated UL94 V-0.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design with open frame structure
• Gold-plated beryllium copper contacts for reliable signal transmission
• Glass-reinforced PCT polyester insulation for thermal stability

Headers, Receptacles, Female Sockets Applications

• Single inline pin header sockets
• Board-to-board interconnects
• General electronic circuit connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct contact finish and packaging configuration. Confirm that the surface mount footprint matches the target PCB layout dimensions. Check RoHS compliance status and moisture sensitivity level requirements prior to procurement integration.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row socket is required for surface mounting. Ensure the mating header has a compatible 0.100 inch pitch. Consider the 3A current rating and operating temperature range for environmental suitability. Verify mechanical retention needs as this model utilizes a push-pull locking style.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 310 series of single row SIP connectors. It serves as a socket counterpart to male headers in various electronic assemblies. The series offers multiple position options and termination styles to support diverse board layout constraints and manufacturing processes.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other 3-position, 2.54mm pitch SIP sockets from Preci-Dip or equivalent manufacturers. Verify identical row spacing, contact material specifications, and surface mount termination compatibility before substitution.
