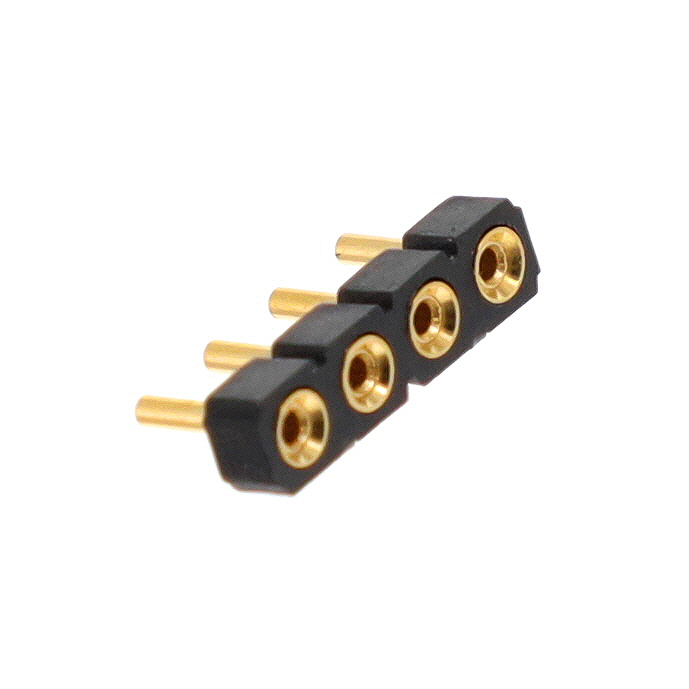

315-11-104-41-003000

315-11-104-41-003000 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN RCPT 4POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 315-11-104-41-003000

• Description：CONN RCPT 4POS 0.1 GOLD PCB
• Series：315
• Mfr：Mill-Max Manufacturing Corp.
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：4
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.071" (1.80mm)
• Contact Length - Post：0.095" (2.41mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：3A
• Voltage Rating：100V, 150VDC

Headers, Receptacles, Female Sockets datasheet and documents for 315-11-104-41-003000
