333-023-541-607

Edgeboard Connectors Overview

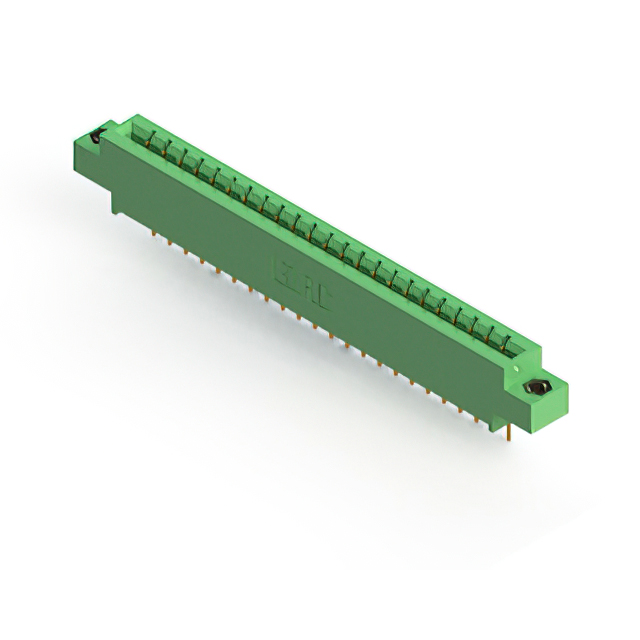

The EDAC Inc. model 333-023-541-607 is a standard card edge connector designed for single-edge board insertion. It features 23 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes copper alloy contacts with gold plating and operates within a temperature range of -40°C to +105°C. Rated for 3 A current, it supports PCB thicknesses from 1.37 mm to 1.78 mm. The housing is constructed from thermoplastic polyester, ensuring reliable electrical performance in vertical through-hole mounting configurations.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for unidirectional card edge insertion
• Gold-plated copper alloy contacts ensure stable signal transmission and corrosion resistance
• Thermoplastic polyester housing provides structural integrity and thermal stability
• Vertical panel or through-hole mounting style facilitates secure board integration

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Test and measurement instrument card connections
• Automotive electronic control unit interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination type, and flange characteristics. Ensure compatibility with the target printed circuit board thickness and mating card dimensions before procurement. Confirm RoHS compliance status and lead time requirements directly with authorized distributors, as availability may vary by region.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 23-position connection is required for boards up to 1.78 mm thick. The 3.96 mm pitch accommodates standard density layouts. Verify that the vertical mounting orientation aligns with the mechanical design constraints. Ensure the operating environment remains within the specified -40°C to +105°C range for optimal insulation resistance and contact reliability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 333 series of standard card edge connectors. The series offers various position counts and termination options, all sharing a consistent 3.96 mm pitch and robust construction. The 333 series is widely used in applications requiring durable, high-reliability interconnects for edge-board systems across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include models with identical pitch and row count but different position numbers, such as 333-020-541-607 or 333-026 variants, provided the pin count matches the application requirement. Cross-series replacements require verification of mechanical dimensions and electrical ratings.
