333-034-540-808

Edgeboard Connectors Overview

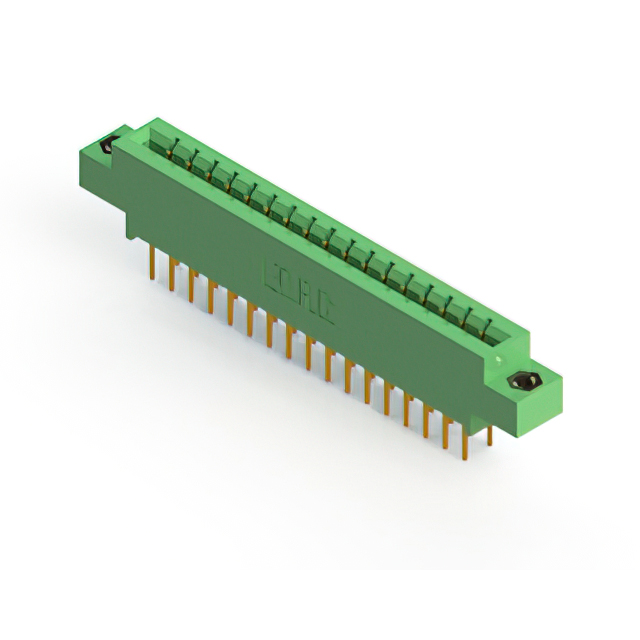

The EDAC Inc. 333-034-540-808 is a dual-sided card edge connector designed for through-hole mounting. It features 34 positions with a 0.156-inch (3.96mm) contact spacing and a 0.200-inch row spacing. The contacts are made of copper alloy with a gold plating thickness of 10.0µin (0.25µm). The housing is green thermoplastic polyester, rated for operation between -40°C and +105°C. It accepts board thicknesses from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-sided female contact configuration for reliable signal transmission
• Gold-plated cantilever spring contacts ensure low resistance connection
• Thermoplastic polyester insulation provides thermal stability
• Through-hole termination supports robust PCB integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronics circuit boards
• Medical device signal routing

Edgeboard Connectors Procurement Notes

Verify the specific pin count and contact orientation against the design requirements before ordering. Confirm that the target printed circuit board thickness falls within the specified acceptance range of 0.054 to 0.070 inches. Ensure the manufacturing facility handles gold-plated components appropriately to preserve contact integrity during assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided interface with 34 channels is required. The 0.156-inch pitch suits applications needing wider spacing than standard high-density connectors. Consider the through-hole mounting style if surface mount alternatives are unsuitable for the mechanical stress environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 333 series, which offers extensive customization options for interconnect needs. The series utilizes cantilever contacts and various housing materials to meet diverse environmental and electrical specifications across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitutes within the 333 series. Verify compatibility regarding pin count, pitch, and mounting style before considering alternative manufacturers.
