337-009-500-112

Edgeboard Connectors Overview

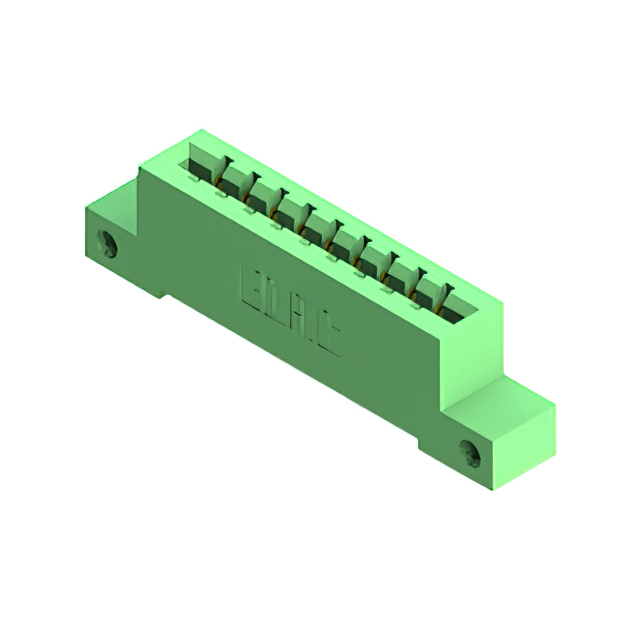

The EDAC Inc. 337-009-500-112 is a standard card edge connector socket featuring 9 positions in a single row configuration. It utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component employs female contacts with gold plating over a copper alloy substrate, ensuring reliable signal transmission. Designed for vertical panel mount installation, it incorporates a flush-mount flange with side opening and unthreaded features measuring 0.128 inches (3.25 mm) in diameter. The housing is constructed from thermoplastic polyester, supporting an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with flush-mount flange and side opening
• Gold-plated female contacts on copper alloy for durability
• Thermoplastic polyester insulation body for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Automotive electronics interfaces demanding high reliability
• Communication equipment utilizing standard card edge form factors

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact flange dimensions and termination style. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status through official documentation prior to integration into regulated assemblies.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 9-position interface is required for vertical mounting applications. The 0.156-inch pitch accommodates standard board layouts. Consider the flush-mount flange requirement for panel integration. Verify that the 3A current rating and 105°C temperature limit meet the operational environment specifications.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and termination options. The 337-009 variant specifically addresses low-pin-count requirements while maintaining the series' standardized mechanical footprint and electrical characteristics for consistent system design.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 337-series parts for alternative pin counts. Verify mechanical compatibility with existing panel cutouts. Check for equivalent offerings from other manufacturers adhering to the same 0.156-inch pitch and single-row specification.
