Edgeboard Connectors Overview

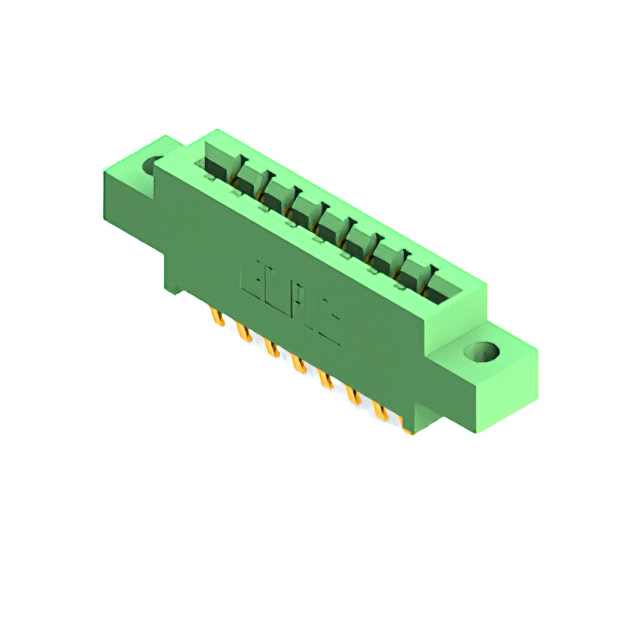

The EDAC Inc. 337-016-560-804 is a dual-edge female card edge connector designed for through-hole mounting. It features 16 positions with a 0.156-inch (3.96mm) pitch across two rows. The contacts are made of copper alloy with gold plating, suitable for non-specified dual-edge cards. The housing is green thermoplastic polyester, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Through-hole termination supports robust PCB integration
• Thermoplastic polyester insulation provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Medical equipment needing reliable signal transmission
• Agricultural technology hardware exposed to harsh environments
• General-purpose electronic modules utilizing standard card edges

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact plating thickness and housing color specifications. Ensure compatibility with the target card edge thickness range of 0.054 to 0.070 inches. Confirm RoHS compliance status if required by project regulations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 16-position connection is required with a 3.96mm pitch. It is appropriate for applications demanding through-hole assembly and gold-plated contacts. Verify that the mating card fits the specified thickness tolerance and that the operating temperature range aligns with environmental conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and termination styles. The 337-016 variant specifically addresses needs for moderate density connections in vertical mounting configurations within industrial and commercial electronics assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 337 series parts with identical 16-position dual-edge specifications. Cross-reference pin count, pitch, and termination method to ensure mechanical and electrical compatibility without redesigning the PCB footprint.
