337-022-560-202

Edgeboard Connectors Overview

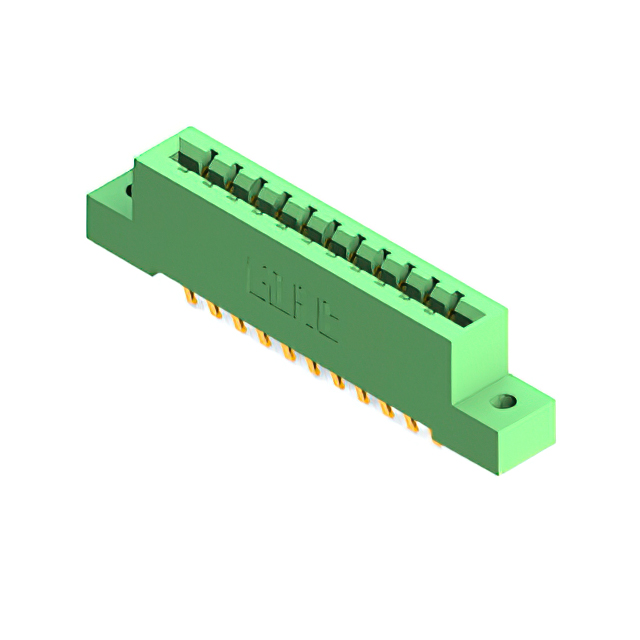

The EDAC Inc. 337-022-560-202 is a standard card edge connector socket designed for vertical panel mount applications. It features a dual-row configuration with 22 positions and a contact spacing of 3.96 mm (0.156 inches). The component supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 3 A current, it employs a through-hole termination method with solder lug end types. The housing is constructed from thermoplastic polyester, providing durability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-side female contact configuration for secure edgeboard engagement
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Thermoplastic polyester housing material for structural stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Computing hardware module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the procurement channel provides authentic components with valid traceability records. Cross-reference the datasheet specifications regarding termination style and mounting orientation to prevent installation errors during assembly processes.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, dual-row interface is required for boards with a 1.57 mm thickness. The 3.96 mm pitch accommodates standard edgeboard layouts. Confirm that the application environment does not exceed the thermal limits defined in the official specification sheet. Validate that the solder lug termination method aligns with the available PCB fabrication capabilities.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and termination options to support diverse electronic assembly needs. The 337-022-560-202 variant specifically addresses requirements for moderate-density connections with robust mechanical retention and electrical performance standards typical of industrial-grade hardware.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides or authorized distributor cross-reference lists for verified alternative part numbers. Do not assume functional equivalence with generic card edge connectors without confirming pinout, pitch, and mechanical dimension alignment.
