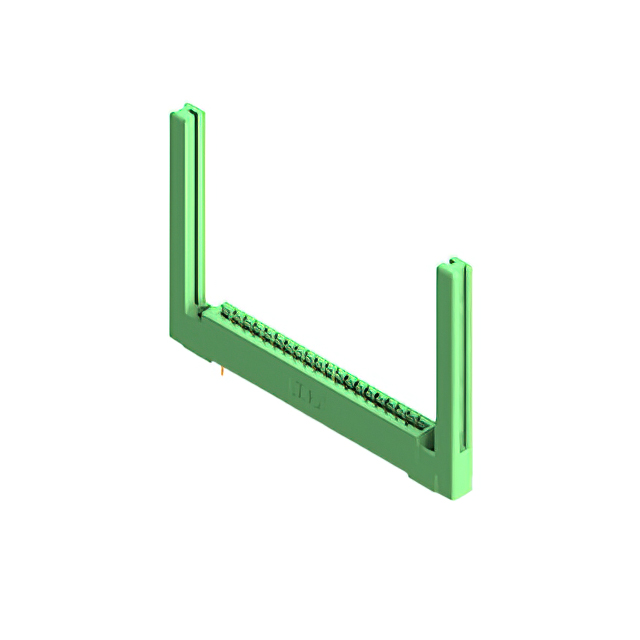

337-038-540-258

$10.43

Description：CONN EDGE DUAL FMALE 38POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box

SKU:e584356ab51d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

337-038-540-258 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 38POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 337-038-540-258

Description：CONN EDGE DUAL FMALE 38POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：19
Number of Positions：38
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 337-038-540-258

337-038-540-258

Edgeboard Connectors Overview

The EDAC Inc. 337-038-540-258 is a standard card edge connector from the 337 series, designed for dual-edge board insertion. It features 38 positions with a 0.156-inch (3.96 mm) pitch and accepts PCB thicknesses between 0.054 and 0.070 inches. The connector utilizes copper alloy contacts with gold plating and a thermoplastic polyester housing. Rated for 3 A current, it supports through-hole termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure board retention
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic polyester housing provides thermal stability
Through-hole mounting style facilitates robust PCB integration

Edgeboard Connectors Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument modules
Computer peripheral interface boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to confirm exact pin count, termination type, and plating specifications. Ensure compatibility with target PCB thickness limits and panel mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for high-density applications. Confirm that the 3.96 mm pitch aligns with the design layout and that the through-hole termination method matches the manufacturing process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and mounting styles, providing modular solutions for diverse electronic assembly needs while maintaining consistent electrical performance standards across the product line.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 337 series variants with matching 38-position dual-edge configurations. Verify identical pitch, termination style, and current ratings when considering alternative part numbers from the same manufacturer family.
