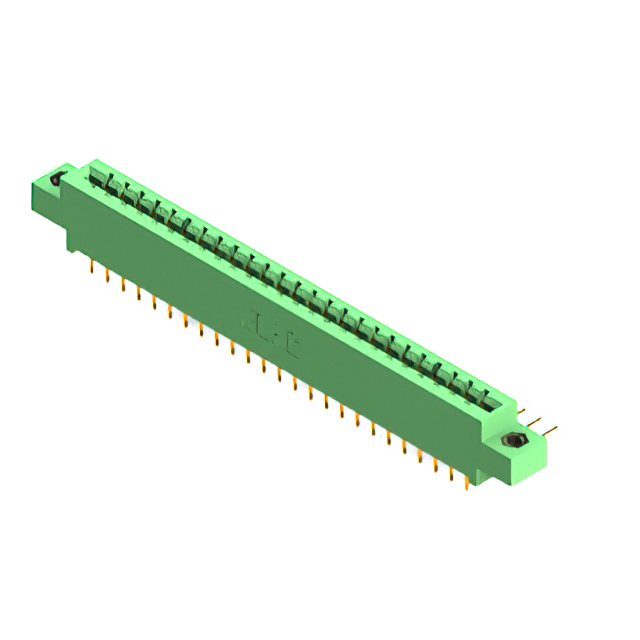

337-050-558-807

$12.42

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box

SKU:bdd2f5a540f7 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

337-050-558-807 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 50POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 337-050-558-807

Description：CONN EDGE DUAL FMALE 50POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：25
Number of Positions：50
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 337-050-558-807

337-050-558-807

Edgeboard Connectors Overview

The EDAC Inc. 337-050-558-807 is a standard card edge connector featuring 50 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. Designed for through-hole vertical mounting, it supports dual-edge board insertion. The component operates within a temperature range of -40°C to +105°C and includes an M3 threaded insert flange feature.

Edgeboard Connectors Feature Summary

Dual-edge contact configuration for secure board retention
Gold-plated copper alloy terminals ensuring reliable conductivity
Thermoplastic polyester insulation providing structural stability
Vertical through-hole mounting with integrated M3 threaded flange

Edgeboard Connectors Applications

Industrial control system interconnects
Medical device circuit board connections
Agricultural technology hardware interfaces
Communication equipment signal routing

Edgeboard Connectors Procurement Notes

Verify specific RoHS compliance details via the manufacturer datasheet before integration. Confirm that the M3 threaded insert aligns with panel thickness requirements. Ensure the 1.57 mm board thickness specification matches the target PCB design constraints for proper mechanical fit.

Edgeboard Connectors Selection Notes

Select this model when a 50-position dual-edge interface is required with a 3.96 mm pitch. The vertical orientation and M3 flange are critical for fixed-panel installations. Verify compatibility with the target operating temperature range and current rating specifications against system demands.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and mounting styles. The 337-050 variant specifically provides a mid-range contact count suitable for moderate-density applications requiring robust mechanical fixation.
