337-060-540-803

Edgeboard Connectors Overview

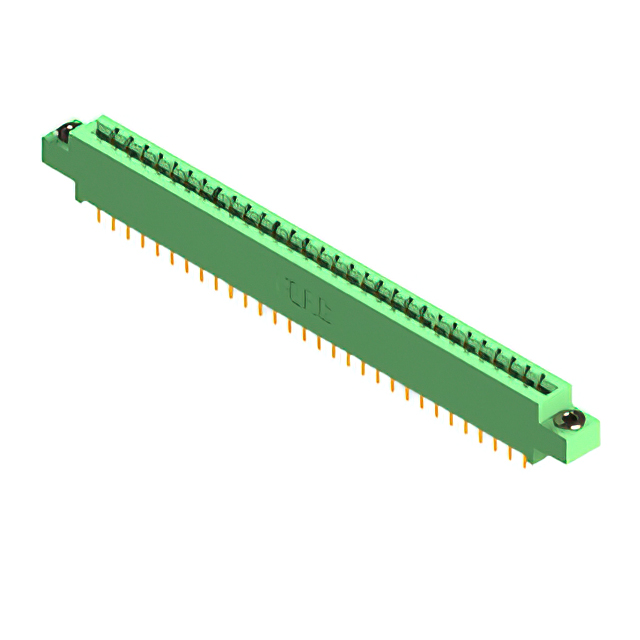

The EDAC Inc. 337-060-540-803 is a standard card edge connector featuring 60 positions arranged in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and accommodates a board thickness of 1.57 mm. The component employs through-hole mounting with wire wrap termination, ensuring secure electrical connections. Contacts are constructed from copper alloy with gold plating to enhance conductivity and corrosion resistance. Rated for 3 A current, it operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration designed for vertical insertion into card edge PCBs
• Gold-plated copper alloy contacts provide reliable signal transmission and durability
• Thermoplastic polyester housing ensures structural integrity across specified thermal ranges
• Wire wrap termination supports robust through-hole installation on printed circuit boards

Edgeboard Connectors Applications

• Industrial control system backplane interconnects
• Telecommunications equipment module interfaces
• Test and measurement instrument card connections
• Computing hardware peripheral expansion slots

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with target PCB stack-up dimensions and hole tolerances. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with a 3.96 mm pitch is required for high-reliability applications. Verify that the mating card edge thickness aligns with the 1.57 mm specification. Consider the 3 A current rating and operating temperature range to ensure suitability for the intended environmental conditions and electrical load requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and mounting configurations to support diverse electronic assembly needs. The 337-060-540-803 variant specifically addresses applications requiring a 60-position dual-row interface with wire wrap termination capabilities.

Edgeboard Connectors Replacement Considerations

Cross-reference compatible parts within the EDAC 337 family for alternative position counts or mounting styles. Verify mechanical dimensions and electrical ratings before substituting with components from other manufacturers to ensure functional equivalence.
