342-014-521-212

Edgeboard Connectors Overview

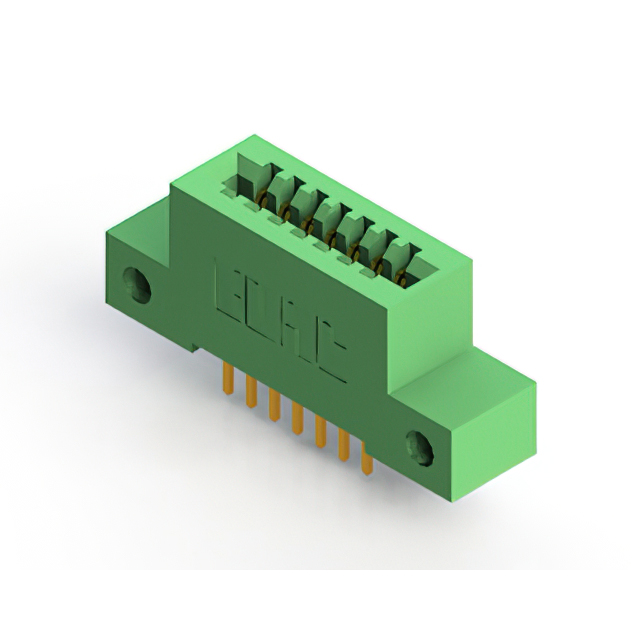

The EDAC Inc. model 342-014-521-212 is a standard card edge connector from the 342 series, designed for signal communication and power connections between motherboards, daughterboards, and extenders. This component features a dual-edge female configuration with 14 positions and a pitch of 0.100 inches (2.54 mm). It utilizes gold-plated contacts to ensure reliable conductivity and is housed in a green thermoplastic polyester insulator. The connector supports board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm) and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Vertical through-hole mounting for stable PCB integration

Edgeboard Connectors Applications

• Signal communication between motherboard and daughterboard
• Power connection interfaces in electronic assemblies
• Extender board interconnections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm that the selected variant matches the required pin count, contact plating, and insulation color. Ensure compatibility with the target printed circuit board thickness and mounting style before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with a 2.54 mm pitch is required for vertical mounting. Confirm that the application environment falls within the specified operating temperature range and that the board thickness aligns with the connector's acceptance specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 342 Series, which provides quality-engineered solutions for interconnecting electronic boards. The series offers various configurations to support diverse signal and power requirements in industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 342 Series ordering guide for direct substitutes. Verify mechanical dimensions, electrical ratings, and mounting compatibility before considering alternative part numbers.
