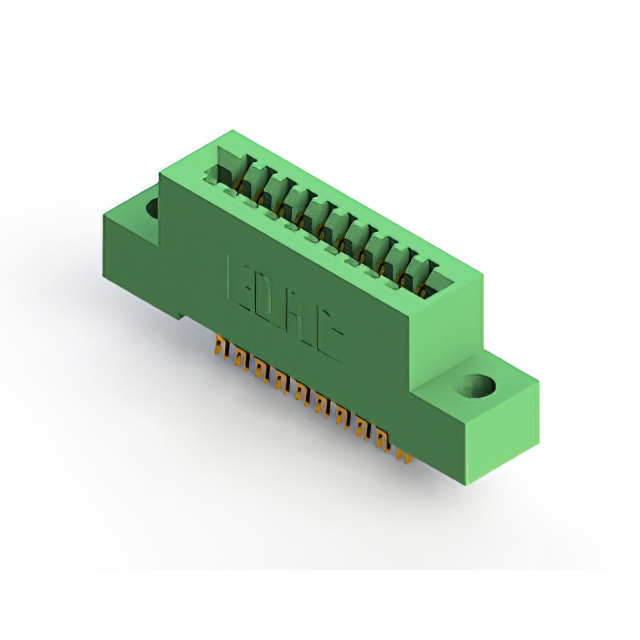

342-020-555-204 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 342-020-555-204
- Description：CONN EDGE DUAL FMALE 20POS 0.100
- Series：342
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 342-020-555-204
Edgeboard Connectors Overview
The EDAC Inc. model 342-020-555-204 is a standard card edge connector featuring a dual female configuration with 20 positions. It utilizes a 0.100-inch (2.54mm) contact pitch and a 0.200-inch (5.08mm) row spacing. Designed for through-hole mounting, this component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The unit incorporates a high-profile insulator body to ensure structural integrity during insertion.
Edgeboard Connectors Feature Summary
- Dual female contact configuration for secure board retention
- High-profile insulator body design for mechanical stability
- Through-hole mounting style for reliable PCB integration
Edgeboard Connectors Applications
- Standard electronic assembly interconnection
- Industrial control system module interfaces
- General-purpose computing hardware backplanes
Edgeboard Connectors Procurement Notes
Verify the exact part number against official EDAC documentation to confirm specifications. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm that the dual female contact type meets the specific interface requirements of the application. Cross-reference datasheets to validate pin count and pitch dimensions before procurement.
Edgeboard Connectors Selection Notes
Select this connector when a dual-sided female interface is required for a 20-position board. The 0.100-inch pitch suits standard industrial layouts. Verify that the through-hole mounting method aligns with the manufacturing process. Consider the high-profile body if vertical clearance allows for robust mechanical locking.
Edgeboard Connectors Part Context
This component belongs to the EDAC 342 series of card edge connectors. The series provides standardized solutions for connecting edge-board modules to base systems. The specific numbering indicates position count, contact type, and mounting characteristics within the manufacturer's catalog structure.
Edgeboard Connectors Replacement Considerations
Compatible substitutes include EDAC models 342-020-521-204 and other variants within the 342 series sharing identical 20-position dual female specifications. Verify that alternative parts maintain the same 0.100-inch pitch and board thickness acceptance criteria.
