342-036-558-107

Edgeboard Connectors Overview

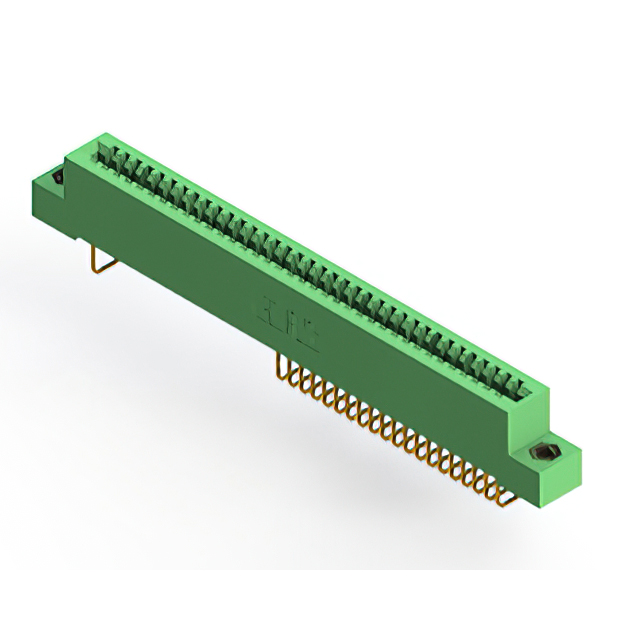

The EDAC Inc. 342-036-558-107 is a standard card edge connector from the 342 series, designed for single-edge board applications. It features 36 positions with a 2.54 mm (0.100 inch) pitch and supports a maximum board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts rated for 3 A current and offers an insulation resistance of 5 GOhms. It employs a PC pin termination style for panel mounting at a right angle. The housing is constructed from thermoplastic polyester, ensuring durability across an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-edge female connector configuration with 36 positions
• Gold-plated copper alloy contacts for reliable signal transmission
• Thermoplastic polyester housing providing high insulation resistance
• Right-angle panel mount design with PC pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation boards
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required contact plating and termination style. Confirm the board thickness compatibility with the specified 1.57 mm limit before integration. Ensure the panel mounting orientation aligns with the mechanical layout requirements. Cross-reference the RoHS compliance status with current environmental regulations applicable to the target market.

Edgeboard Connectors Selection Notes

Select this component when a single-edge connection is required for 36 signals with a standard 2.54 mm pitch. The right-angle panel mount style is suitable for space-constrained enclosures where vertical clearance is limited. The gold plating ensures longevity in environments prone to oxidation. Verify that the 3 A current rating meets the electrical load requirements of the application circuitry.

Edgeboard Connectors Part Context

This part belongs to the EDAC 342 series of standard card edge connectors, which are widely used in general-purpose electronic assemblies. The series offers various position counts and mounting styles to accommodate different board densities. The 342-036 variant specifically addresses mid-density applications requiring reliable single-sided connectivity with standardized dimensions.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different termination or mounting variations. Verify mechanical footprint compatibility before swapping. No alternative part numbers are explicitly confirmed as direct replacements in the provided documentation.
