345-012-524-112

$6.65

Description：CONN EDGE SINGLE FML 12POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box

SKU:34bba4604be5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

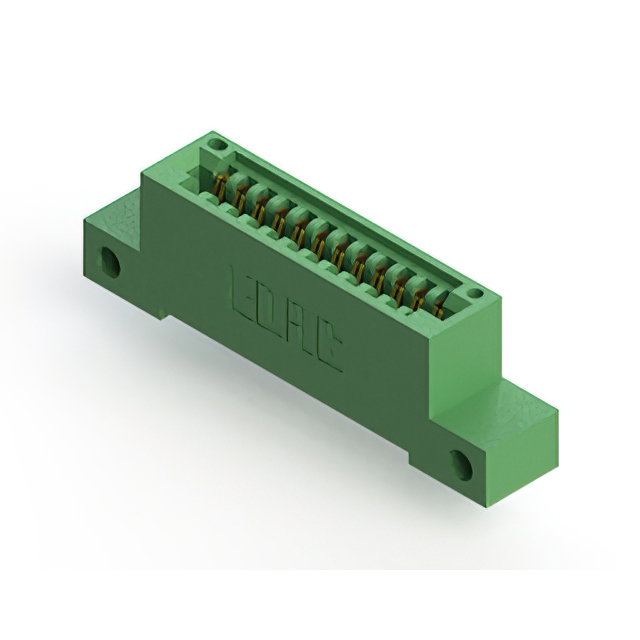

345-012-524-112 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 12POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 345-012-524-112

Description：CONN EDGE SINGLE FML 12POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：12
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 345-012-524-112

345-012-524-112

Edgeboard Connectors Overview

The EDAC Inc. 345-012-524-112 is a standard card edge connector featuring a single row of twelve positions with a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission. Rated for 3 A current at operating temperatures ranging from -40 °C to +105 °C, the unit utilizes thermoplastic polyester insulation with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

Accepts 0.062 inch nominal thickness PCBs
Gold-plated copper alloy contacts
Thermoplastic polyester insulator

Edgeboard Connectors Applications

Single-sided card edge interconnections
Through-hole PCB assembly
Industrial control modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm contact plating thickness, board thickness tolerance, and flange configuration. Ensure the ordering part number matches the required row count and position quantity exactly. Cross-reference the RoHS compliance status with the latest official documentation before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, twelve-position interface is required for vertical or right-angle through-hole applications. Confirm that the target PCB thickness aligns with the 1.57 mm specification. Verify that the thermal environment remains within the -40 °C to +105 °C operational range during system design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 345 series, which provides standard card edge solutions. The series offers various position counts and mounting styles. This specific model represents a fixed configuration within the broader family of connectors designed for general-purpose electronic interconnection needs.
